Condition |
Brand New
|
Product Numbers |
Part Code: B550M AORUS ELITE AX
EAN Number: 4719331855055
|
Stock Status |
Currently 15 available in stock.
We have more stock arriving: 13/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£83.45 exc vat |
| 10 - 19 units |
£83.24 exc vat |
| 20 - 49 units |
£83.03 exc vat |
| 50 - 99 units |
£82.82 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

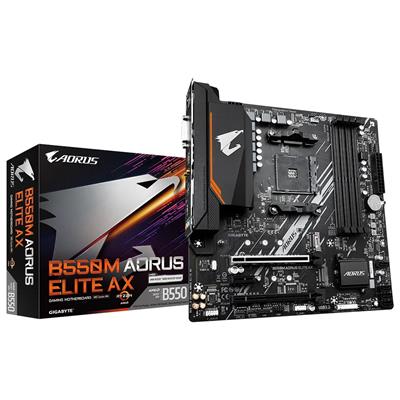

Product Title: Aorus B550M AORUS ELITE AX (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB124913
Manufacturers Part Code: B550M AORUS ELITE AX
Product Name: Aorus B550M AORUS ELITE AX (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B550M AORUS ELITE AX
EAN: 4719331855055
UPC: 889523037294
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B550
CPU Interface: Socket AM4
CPU Support: https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4733 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x4: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 3.0 x2/SATA
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back DVI-D Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 1
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers‚1 x CPU cooler LED strip/RGB LED strip header
Internal Button(s): 1 x Q-Flash Plus
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27cm
Package Length: 27.5cm
Package Height: 6.8cm
Gross Weight: 1.18Kg
Special Features: Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.‚5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs.‚Ultra Durable PCIe 4.0 Ready x16 Slot.‚Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.‚Onboard Wi-Fi 6E 802.11ax and BT 5.3.‚High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.‚Realtek GbE LAN with Bandwidth Management.‚Rear HDMI & DVI Support.‚RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Anti-Sulphur Resistors Design.
Package Contents: Motherboard
Keywords: Motherboard‚AM4‚DDR4‚WiFi‚Bluetooth
|
