Condition |
Brand New
|
Product Numbers |
Part Code: B650M AORUS ELITE AX ICE
EAN Number: 4719331859336
|
Stock Status |
Currently 13 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£140.11 exc vat |
| 10 - 19 units |
£139.76 exc vat |
| 20 - 49 units |
£139.41 exc vat |
| 50 - 99 units |
£139.06 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

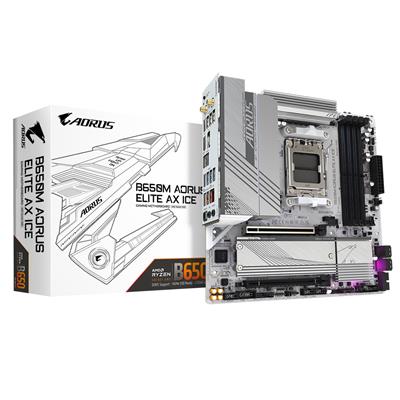

Product Title: Aorus B650 AORUS ELITE AX ICE (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB124336
Manufacturers Part Code: B650M AORUS ELITE AX ICE
Product Name: Aorus B650 AORUS ELITE AX ICE (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B650M AORUS ELITE AX ICE
EAN: 4719331859336
UPC: 889523040368
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-AX-ICE/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8000 (O.C.)
Max. Memory Support: 192GB
PCI Express 4.0 x16: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 5
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA antenna connectors
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
Thunderbolt AIC Connector(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers‚1 x CPU Cooler LED Strip/RGB LED Strip Header
Internal Button(s): 1 x Reset
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27cm
Package Length: 28cm
Package Height: 7cm
Gross Weight: 1.73Kg
Special Features: AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.‚Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution.‚Dual Channel DDR5: 4 x DIMMs with AMD EXPO and Intel XMP Memory Module Support.‚Superfast Storage: 1 x PCIe 5.0 x4 and 1x PCIe 4.0 x4 M.2 Connector.‚Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and 25110 M.2 SSD Performance.‚EZ-Latch: PCIe x16 Slot and M.2 Connectors with Quick Release and Screwless Design.‚Fast Networks: 2.5GbE LAN and Wi-Fi 6E.‚Extended Connectivity: HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard‚1 x SATA Cables‚Support Disk‚Manual
Keywords: Motherboard‚AM5‚B650‚DDR5‚WiFi‚Bluetooth‚Micro ATX‚M-ATX
|
