Condition |
Brand New
|
Product Numbers |
Part Code: B760I AORUS PRO
EAN Number: 4719331854843
|
Stock Status |
Currently 24 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£138.66 exc vat |
| 10 - 19 units |
£138.31 exc vat |
| 20 - 49 units |
£137.97 exc vat |
| 50 - 99 units |
£137.62 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

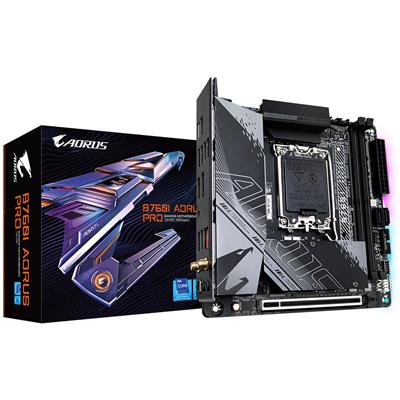

Product Title: Aorus B760I AORUS PRO (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Mini-ITX)
KSN SKU Code: MB123491
Manufacturers Part Code: B760I AORUS PRO
Product Name: Aorus B760I AORUS PRO (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Mini-ITX)
Web Address: www.gigabyte.com
Model Number: B760I AORUS PRO
EAN: 4719331854843
UPC: 889523037317
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel B760 Express
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/B760I-AORUS-PRO-rev-1x/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 8000 (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 1
S-ATA 6Gb/s Port(s): 2
RAID: Raid 0/1
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel‚Support for S/PDIF Out
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 1
USB 3.2 Header(s) Gen 2: 2
Front Panel Audio Connector: 1
Internal Other Port(s): 1 x Addressable LED Strip Header‚1 x RGB LED Strip Header
Form Factor: Mini ITX
Product Width: 170mm
Product Length: 170mm
Product Height: 24cm
Package Width: 22.3cm
Package Length: 9.5cm
Gross Weight: 1.28Kg
Special Features: Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors.‚Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution.‚Dual Channel DDR5: 2 x DIMMs with XMP 3.0 Memory Module Support.‚Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.‚Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminium Baseplate.‚Fast Networks: Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax.‚Extended Connectivity: Front USB3.2 Gen 1 USB-C, Rear USB-C 10Gb/s, DP, HDMI.‚RGB FUSION: Multi-Zone Addressable LED Light Show Design, Support Addressable LED and RGB LED Strips.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard‚Manual‚1 x Antenna‚2 x SATA Cables‚1 x RGB LED Strip Extension Cable‚2 x Fan Power Extension Cables
Keywords: Motherboard‚1700‚B760‚DDR5‚WiFi‚Bluetooth‚Mini-ITX‚M-ITX
|
