Condition |
Brand New
|
Product Numbers |
Part Code: B860M AORUS ELITE WIFI6E
EAN Number:
|
Stock Status |
| We have more stock arriving: 09/03/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£163.99 exc vat |
| 10 - 19 units |
£163.58 exc vat |
| 20 - 49 units |
£163.17 exc vat |
| 50 - 99 units |
£162.76 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

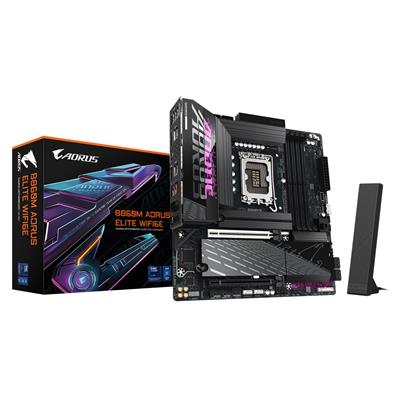

Product Title: Aorus B860M AORUS ELITE WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126193
Manufacturers Part Code: B860M AORUS ELITE WIFI6E
Product Name: Aorus B860M AORUS ELITE WIFI6E (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B860M AORUS ELITE WIFI6E
EAN: 4719331866877`
UPC: 889523046609
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel B860 Express
CPU Interface: Socket 1851
CPU Support: https://www.gigabyte.com/Motherboard/B860M-AORUS-ELITE-WIFI6E-ICE/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 9200 (O.C.)
Max. Memory Support: 256GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚2 x PCIe Gen 4.0 x4
LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB4 Port(s) Type-C: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x Antenna connectors
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 12
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2: 1
Thunderbolt Header(s): 2
HDMI Port(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header
Internal Button(s): 1 x Power‚1 x Reset‚1 x Q-Flash Plus
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27cm
Package Length: 27cm
Package Height: 7cm
Gross Weight: 1.69Kg
Special Features: Supports Intel Core Ultra processors.‚Digital twin 12+1+2 phases VRM solution.‚Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support.‚D5 Bionic Corsa for Infinite Memory Performance.‚AI Perfdrive: Provides optimal and customized BIOS preset profile for users.‚EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.‚EZ-Latch Click: M.2 heatsinks with screwless design.‚Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.‚Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.‚Ultra-Fast Storage: 3 x M.2 slots, including 1x PCIe 5.0 x4.‚Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.‚Fast Networking: 2.5GbE LAN and Wi-Fi 6E with directional Ultra-high gain antenna.‚Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort.
Package Contents: Motherboard‚Manual‚Quick Installation Guide‚1 x Antenna‚2 x SATA cables‚1 x G Connector‚Three packs of M.2 thick/thin rubber pads
Keywords: Motherboard‚1851‚B860‚DDR5‚Wi-Fi 6E
|
