Condition |
Brand New
|
Product Numbers |
Part Code: Z790 AORUS MASTER
EAN Number: 4719331848934
|
Stock Status |
Currently 11 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£324.89 exc vat |
| 10 - 19 units |
£324.07 exc vat |
| 20 - 49 units |
£323.26 exc vat |
| 50 - 99 units |
£322.44 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

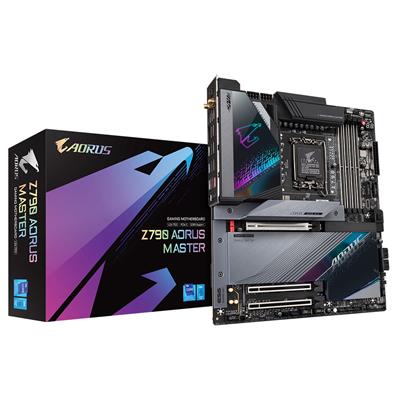

Product Title: Aorus Z790 AORUS MASTER (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/Extended ATX)
KSN SKU Code: MB122591
Manufacturers Part Code: Z790 AORUS MASTER
Product Name: Aorus Z790 AORUS MASTER (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/Extended ATX)
Web Address: www.gigabyte.com
Model Number: Z790 AORUS MASTER
EAN: 4719331848934
UPC: 889523033647
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel Z790 Express
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8000 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 2
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 5.0 x4
On-Board LAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Bluetooth: v5.3
On-Board Audio: Realtek ALC1220-VB CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-C Gen 1: 1
Back USB 3.2 Port(s) Type-A Gen 2: 7
Back USB 3.2 Port(s) Type-C Gen 2x2: 2
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA Antenna Connectors
Back Button(s): 1 x Q-Flash Plus‚1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2x2: 1
Thunderbolt AIC Connector(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers‚1 x Noise Detection Header‚2 x Temperature Sensor Headers‚Voltage Measurement Points
Internal Button(s): 1 x Power‚1 x Reset‚1 x Reset Jumper‚1 x Clear CMOS Jumper
Form Factor: Extended ATX
Product Width: 260mm
Product Length: 305mm
Package Width: 29.5cm
Package Length: 35cm
Package Height: 8cm
Gross Weight: 3.22Kg
Special Features: Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors.‚Unparalleled Performance: Direct 20+1+2 Phases Digital VRM Solution.‚Dual Channel DDR5: 4 x SMD DIMMs with XMP 3.0 Memory Module Support.‚Next Generation Storage: 1 x PCIe 5.0 x4 and 4 x PCIe 4.0 x4 M.2 Connectors.‚Fins-Array III and M.2 Thermal Guard III: To Ensure VRM Power Stability and 25110 PCIe 5.0 M.2 SSD Performance.‚EZ-Latch Plus: SMD PCIe 5.0 x16 Slot and M.2 Connectors with Quick Release and Screwless Design.‚Hi-Fi Audio with DTS:X Ultra: ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC.‚Fast Networks: Marvell AQtion 10GbE LAN and Intel Wi-Fi 6E 802.11ax with DCT.‚Extended Connectivity: DP, USB-C 10Gb/s, Front and Dual Rear USB-C 20Gb/s.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection.
Package Contents: Motherboard‚Manual‚1 x Antenna‚2 x SATA Cables‚1 x RGB LED Strip Extension Cable‚1 x Noise Detection Cable‚2 x Thermistor Cables‚1 x G Connector
Keywords: Motherboard‚1700‚Z790‚DDR5‚WiFi‚Bluetooth‚Extended ATX‚E-ATX
|
