Condition |
Brand New
|
Product Numbers |
Part Code: 90MB17H0-M0EAYC
EAN Number: 4711081135395
|
Stock Status |
Currently 1176 available in stock.
We have more stock arriving: 11/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£63.87 exc vat |
| 10 - 19 units |
£63.71 exc vat |
| 20 - 49 units |
£63.55 exc vat |
| 50 - 99 units |
£63.39 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

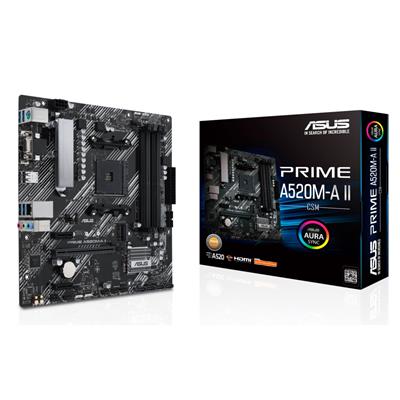

Product Title: ASUS PRIME A520M-A II/CSM (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB123923
Manufacturers Part Code: 90MB17H0-M0EAYC
Product Name: ASUS PRIME A520M-A II/CSM (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME A520M-A II/CSM
EAN: 4711081135395
UPC: 195553135399
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS
Chipset: A520
CPU Interface: Socket AM4
CPU Support: https://www.asus.com/motherboards-components/motherboards/csm/prime-a520m-a-ii-csm/helpdesk_cpu/?model2Name=PRIME-A520M-A-II-CSM
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4800 (O.C.)
PCI Express 3.0 x16: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 3.0 x4/SATA
On-Board LAN: 1 x Realtek 1Gb Ethernet
On-Board Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 2 x AURA Addressable Gen 2 header‚2 x AURA RGB headers
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 26.5cm
Package Length: 27.5cm
Package Height: 5cm
Gross Weight: 0.93Kg
Special Features: AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.‚Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+.‚Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A.‚Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.‚ASUS Control Centre Express (ACCE) for easier IT endpoint management.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚1 x M.2 SSD screw package‚1 x Support DVD‚1 x User manual
Keywords: Motherboard‚A520‚AM4‚DDR4‚M-ATX‚Micro ATX
|
