Condition |
Brand New
|
Product Numbers |
Part Code: 90MB19X0-M0EAY0
EAN Number: 4711081309741
|
Stock Status |
Currently 328 available in stock.
We have more stock arriving: 19/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£104.78 exc vat |
| 10 - 19 units |
£104.52 exc vat |
| 20 - 49 units |
£104.25 exc vat |
| 50 - 99 units |
£103.99 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

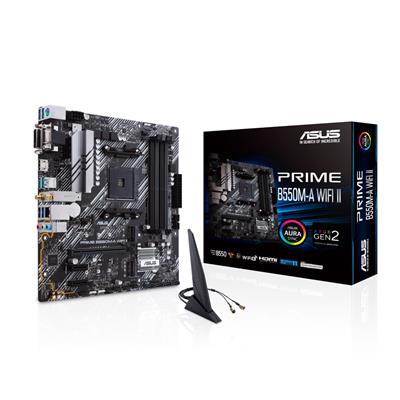

Product Title: ASUS PRIME B550M-A WIFI II (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB122198
Manufacturers Part Code: 90MB19X0-M0EAY0
Product Name: ASUS PRIME B550M-A WIFI II (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B550M-A WIFI II
EAN: 4711081309741
UPC: 195553309745
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: B550
CPU Interface: Socket AM4
CPU Support: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-B550M-A-WIFI-II/HelpDesk_CPU/
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4866 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x SATA/PCIe 4.0 x4‚1 x SATA/PCIe 3.0 x4
On-Board LAN: 1 x Realtek 1Gb Ethernet
Wireless NIC: Wi-Fi 6
Wireless Technology: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5GHz frequency band
Bluetooth: v5.2
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back VGA Port(s): 1
Back DVI-D Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 1 x Addressable Gen 2 header‚2 x AURA RGB headers
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 26.5cm
Package Length: 28cm
Package Height: 7cm
Gross Weight: 1.18Kg
Special Features: AMD AM4 Socket: Ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors.‚Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility.‚Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support.‚Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x I/O Shield‚1 x M.2 SSD screw package‚1 x Support DVD‚1 x User manual
Keywords: Motherboard‚AM4‚B550‚DDR4‚HDMI‚WiFi‚Bluetooth‚M-ATX‚Micro ATX
|
