Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1F60-M0EAY0
EAN Number: 4711387236628
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£102.18 exc vat |
| 10 - 19 units |
£101.93 exc vat |
| 20 - 49 units |
£101.67 exc vat |
| 50 - 99 units |
£101.42 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

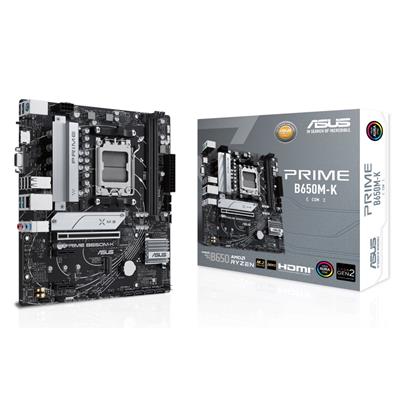

Product Title: ASUS PRIME B650M-K (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB123612
Manufacturers Part Code: 90MB1F60-M0EAY0
Product Name: ASUS PRIME B650M-K (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B650M-K
EAN: 4711387236628
UPC: 197105236622
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-b650m-k/helpdesk_qvl_cpu/?model2Name=PRIME-B650M-K
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 6400+ (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 1
PCI Express 4.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Button(s): 1 x BIOS FlashBack
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 2 x Addressable Gen 2 headers‚1 x Aura RGB header
Form Factor: Micro ATX
Product Width: 221mm
Product Length: 244mm
Package Width: 26.5cm
Package Length: 27cm
Package Height: 5.2cm
Gross Weight: 1.08Kg
Special Features: AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors.‚Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C.‚ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.‚Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚1 x M.2 Rubber Package‚1 x Screw Package for M.2 SSD‚1 x User guide
Keywords: Motherboard‚AM5‚B650‚DDR5‚Micro ATX‚M-ATX
|
