Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1H30-M0EAY0
EAN Number: 4711387429761
|
Stock Status |
Currently 10 available in stock.
We have more stock arriving: 09/01/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£89.2 exc vat |
| 10 - 19 units |
£88.98 exc vat |
| 20 - 49 units |
£88.75 exc vat |
| 50 - 99 units |
£88.53 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

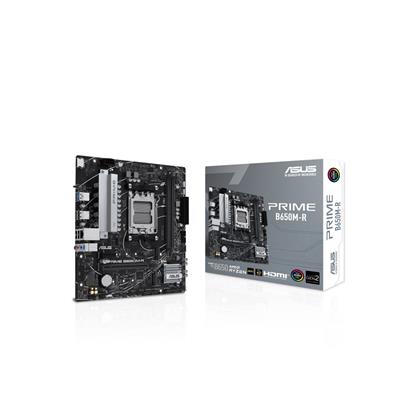

Product Title: ASUS PRIME B650M-R (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB124611
Manufacturers Part Code: 90MB1H30-M0EAY0
Product Name: ASUS PRIME B650M-R (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B650M-R
EAN: 4711387429761
UPC: 197105429765
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-b650m-r/helpdesk_qvl_cpu?model2Name=PRIME-B650M-R
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 2
PCI Express 4.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Back USB 2.0 Port(s): 4
Back USB 5Gbps Port(s) Type-A: 2
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Button(s): 1 x BIOS FlashBack
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 5Gbps Header(s): 2
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers
Form Factor: Micro ATX
Product Width: 221mm
Product Length: 236mm
Package Width: 26.5cm
Package Length: 27cm
Package Height: 5.6cm
Gross Weight: 0.99Kg
Special Features: AM5 Socket for AMD Ryzen Desktop Processors.‚Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, USB 5Gbps ports, front USB 5Gbps Type-C.‚Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.‚Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚2 x M.2 Anchors‚1 x Quick start guide
Keywords: Motherboard‚AM5‚B650‚DDR5‚M-ATX‚Micro ATX
|
