Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1CW0-M1EAY0
EAN Number: 4711081970309
|
Stock Status |
| We have more stock arriving: 19/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£105.68 exc vat |
| 10 - 19 units |
£105.42 exc vat |
| 20 - 49 units |
£105.15 exc vat |
| 50 - 99 units |
£104.89 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

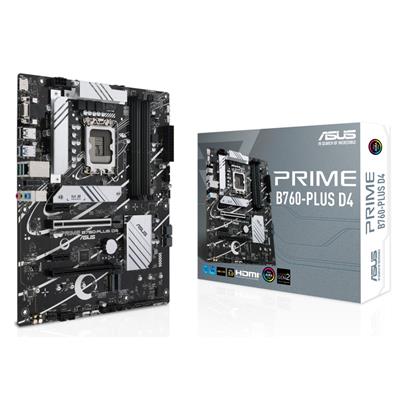

Product Title: ASUS PRIME B760-PLUS D4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122806
Manufacturers Part Code: 90MB1CW0-M1EAY0
Product Name: ASUS PRIME B760-PLUS D4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: PRIME B760-PLUS D4
EAN: 4711081970309
UPC: 195553970303
Package Type: Retail
Warranty: 3 Year
BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus-d4/helpdesk_knowledge/
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 5066 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x2
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 1
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Vertical M.2 slot (Key E)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.1 Header(s) Gen 1: 2
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 Headers‚1 x Aura RGB Header‚1 x Clear CMOS Header
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 26.5cm
Package Length: 33cm
Package Height: 5.4cm
Gross Weight: 1.16Kg
Special Features: Armoury Crate‚AI Suite 3‚ASUS CPU-Z‚UEFI BIOS‚ASUS EZ DIY
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚1 x M.2 Rubber Package‚2 x Screw Packages for M.2 SSD‚1 x User guide
Keywords: Motherboard‚1700‚B760‚DDR4
|
