Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1GY0-M0EAY0
EAN Number: 4711387469910
|
Stock Status |
Currently 14 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£111.39 exc vat |
| 10 - 19 units |
£111.11 exc vat |
| 20 - 49 units |
£110.83 exc vat |
| 50 - 99 units |
£110.55 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

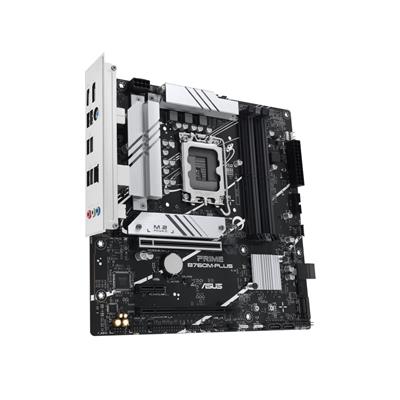

Product Title: ASUS PRIME B760M-PLUS (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB124608
Manufacturers Part Code: 90MB1GY0-M0EAY0
Product Name: ASUS PRIME B760M-PLUS (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B760M-PLUS
EAN: 4711387469910
UPC: 197105469914
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-plus/helpdesk_qvl_cpu?model2Name=PRIME-B760M-PLUS
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 192GB
PCI Express 4.0 x16: 2
PCI Express 4.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet‚ASUS LANGuard
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 10Gbps Port(s) Type-A: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 3
USB 5Gbps Header(s): 2
Parallel Port Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x Aura RGB header
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27.5cm
Package Length: 28cm
Package Height: 6.7cm
Gross Weight: 1.19Kg
Special Features: Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors.‚Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C.‚Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.‚Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.‚Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x M.2 Rubber Package‚1 x Screw package for M.2 SSD‚1 x Quick start guide
Keywords: Motherboard‚1700‚B760‚DDR5‚M-ATX‚Micro ATX
|
