Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1FI0-M1EAY0
EAN Number: 4711387198506
|
Stock Status |
Currently 34 available in stock.
We have more stock arriving: 08/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£89.28 exc vat |
| 10 - 19 units |
£89.06 exc vat |
| 20 - 49 units |
£88.83 exc vat |
| 50 - 99 units |
£88.61 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

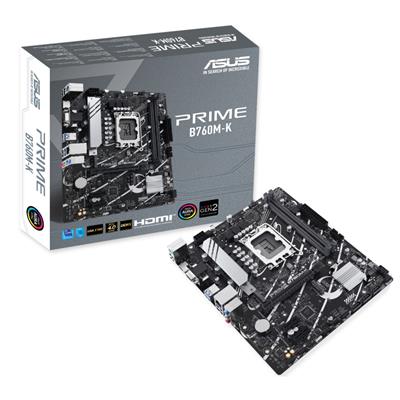

Product Title: ASUS PRIME B760M-K (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB123609
Manufacturers Part Code: 90MB1FI0-M1EAY0
Product Name: ASUS PRIME B760M-K (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B760M-K
EAN: 4711387198506
UPC: 197105198500
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/helpdesk_qvl_cpu/?model2Name=PRIME-B760M-K
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 8000 (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 1
PCI Express 4.0 x1: 2
S-ATA 6Gb/s Port(s): 4
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 2 x Addressable Gen 2 headers‚1 x Aura RGB header
Form Factor: Micro ATX
Product Width: 211mm
Product Length: 244mm
Package Width: 26cm
Package Length: 27.5cm
Package Height: 5.2cm
Gross Weight: 0.93Kg
Special Features: Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors.‚Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support.‚Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚2 x M.2 anchors‚1 x User guide
Keywords: Motherboard‚1700‚B760‚DDR5‚Micro ATX‚M-ATX
|
