Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1EL0-M1EAY0
EAN Number: 4711387131435
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£122.04 exc vat |
| 10 - 19 units |
£121.74 exc vat |
| 20 - 49 units |
£121.43 exc vat |
| 50 - 99 units |
£121.13 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

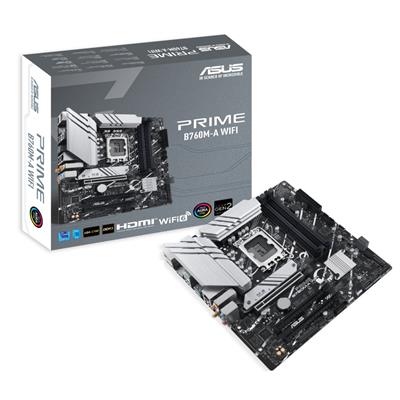

Product Title: ASUS PRIME B760M-A WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB123608
Manufacturers Part Code: 90MB1EL0-M1EAY0
Product Name: ASUS PRIME B760M-A WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME B760M-A WIFI
EAN: 4711387131435
UPC: 197105131439
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-b760m-a-wifi/helpdesk_qvl_cpu/?model2Name=PRIME-B760M-A-WIFI
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 3
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
Wireless NIC: Wi-Fi 6
Wireless Technology: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5GHz frequency band
Bluetooth: v5.2
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back HDMI Port(s): 2
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 3
USB 3.2 Header(s) Gen 1: 3
Parallel Port Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x Aura RGB header
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27.5cm
Package Length: 27.8cm
Package Height: 6.7cm
Gross Weight: 1.48Kg
Special Features: Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors.‚Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C.‚Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.‚Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s Cables‚1 x ASUS Wi-Fi Moving Antennas‚1 x I/O Shield‚1 x M.2 Rubber Package‚1 x Screw Package for M.2 SSD‚1 x User Guide
Keywords: Motherboard‚1700‚B760‚DDR5‚WiFi‚Bluetooth‚Micro ATX‚M-ATX
|
