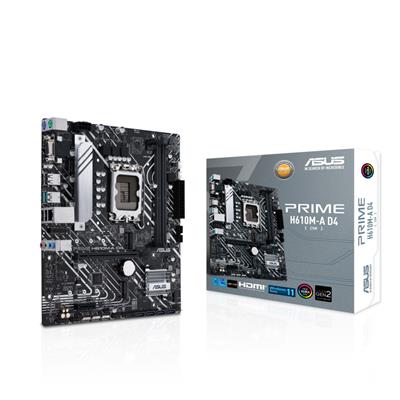

ASUS PRIME H610M-A D4-CSM (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Micro ATX)
[MB122794]

Condition  Brand New Product Numbers  Part Code: 90MB19P0-M0EAYC  EAN Number: 4711081514442 Stock Status Currently 467 available in stock. We have more stock arriving: Delivery Price  Add to Cart for Instant Delivery Pricing  Quantity Price Break Discounts  5 - 9 units   £81.98 exc vat   10 - 19 units   £81.78 exc vat   20 - 49 units   £81.57 exc vat   50 - 99 units   £81.37 exc vat   100 or more units   * Negotiable *  Discounts Are Applied During Checkout Share Content

Product Title: ASUS PRIME H610M-A D4-CSM (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Micro ATX)

KSN SKU Code: MB122794

Manufacturers Part Code: 90MB19P0-M0EAYC

Product Name: ASUS PRIME H610M-A D4-CSM (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address: www.asus.com

Model Number: PRIME H610M-A D4-CSM

EAN: 4711081514442

UPC: 195553514446

Package Type: Retail

Warranty: 3 Years

BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS

Chipset: Intel H610

CPU Interface: Socket 1700

CPU Support: https://www.asus.com/motherboards-components/motherboards/csm/prime-h610m-a-d4-csm/helpdesk_qvl_cpu/

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR4 3200

Max. Memory Support: 64GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

M.2 Socket(s): 1 x PCIe Gen 3.0 x4‚1 x PCIe Gen 3.0 x2

On-Board LAN: 1 x Intel 1Gb Ethernet

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back PS/2 Mouse Port: 1

Back PS/2 Keyboard Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back VGA Port(s): 1

Back HDMI Port(s): 11

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x V-M.2 slot (Key E)

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 3 x Addressable Gen 2 headers‚2 x AURA RGB headers

Form Factor: Micro ATX

Product Width: 211mm

Product Length: 244mm

Package Width: 26.5cm

Package Length: 27.5cm

Package Height: 5.5cm

Gross Weight: 0.92Kg

Special Features: Intel LGA 1700 socket: Ready for 13th and 12th Gen Intel processors.‚Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+.‚Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 2 ports.‚Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.‚ASUS Control Centre Express (ACCE) for easier IT endpoint management.

Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x I/O Shield‚1 x M.2 SSD screw package‚1 x Support DVD‚1 x ACC Express Activation Key Card‚1 x User guide

Keywords: Motherboard‚1700‚H610‚DDR4‚M-ATX‚Micro ATX
