Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1C80-M0EAY0
EAN Number: 4711081758211
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£83.74 exc vat |
| 10 - 19 units |
£83.53 exc vat |
| 20 - 49 units |
£83.32 exc vat |
| 50 - 99 units |
£83.11 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

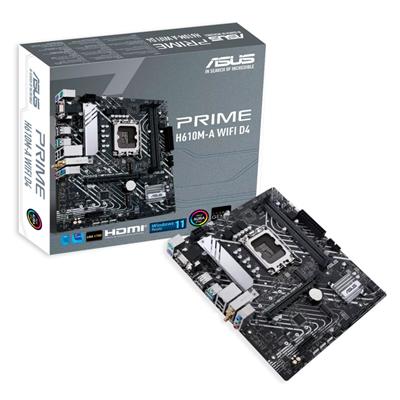

Product Title: ASUS PRIME H610M-A WIFI D4 (Socket 1700/H610/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB123788
Manufacturers Part Code: 90MB1C80-M0EAY0
Product Name: ASUS PRIME H610M-A WIFI D4 (Socket 1700/H610/DDR4/S-ATA 600/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME H610M-A WIFI D4
EAN: 4711081758211
UPC: 195553758215
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel H610
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi-d4/helpdesk_qvl_cpu/
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR4 3200
Max. Memory Support: 64GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
M.2 Socket(s): 1 x PCIe Gen 3.0 x4‚1 x PCIe Gen 3.0 x2
On-Board LAN: 1 x Intel 1Gb Ethernet
Wireless NIC: WiFi 5
Wireless Technology: IEEE 802.11 a/b/g/n/ac‚‚Supports 2.4/5GHz frequency band
Bluetooth: v5.0
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Mouse Port: 1
Back PS/2 Keyboard Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 Headers‚2 x AURA RGB Headers
Form Factor: Micro ATX
Product Width: 211mm
Product Length: 244mm
Package Width: 26.5cm
Package Length: 27cm
Package Height: 5.2cm
Gross Weight: 1.01Kg
Special Features: Intel LGA 1700 socket: Ready for 13th and 12th Gen Intel processors.‚Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+.‚Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports.‚Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x IO Shield‚1 x M.2 SSD screw package‚1 x Support Disk‚1 x User guide
Keywords: Motherboard‚1700‚H610‚DDR4‚WiFi‚Bluetooth‚M-ATX‚Micro ATX
|
