Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1G00-M0EAY0
EAN Number: 4711387301777
|
Stock Status |
Currently 271 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£99.46 exc vat |
| 10 - 19 units |
£99.21 exc vat |
| 20 - 49 units |
£98.96 exc vat |
| 50 - 99 units |
£98.71 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

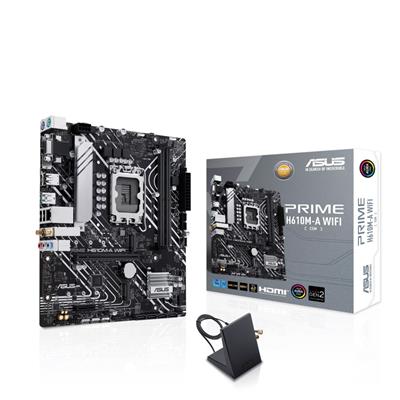

Product Title: ASUS PRIME H610M-A WIFI (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB123873
Manufacturers Part Code: 90MB1G00-M0EAY0
Product Name: ASUS PRIME H610M-A WIFI (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: PRIME H610M-A WIFI
EAN: 4711387301777
UPC: 197105301771
Package Type: Retail
Warranty: 3 Years
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Chipset: Intel H610
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi/helpdesk_knowledge/?model2Name=PRIME-H610M-A-WIFI
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 5600 (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
M.2 Socket(s): 1 x PCIe Gen 3.0 x4‚1 x PCIe Gen 3.0 x2
On-Board LAN: 1 x Intel 1Gb Ethernet‚ASUS LANGuard
Wireless NIC: Wi-Fi 5
Wireless Technology: Wi-Fi 5 (802.11 a/b/g/n/ac)‚Supports 2.4/5GHz frequency band
Bluetooth: v5.0
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Mouse Port: 1
Back PS/2 Keyboard Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 headers‚2 x AURA RGB headers
Form Factor: Micro ATX
Product Width: 216mm
Product Length: 244mm
Package Width: 26.5cm
Package Length: 27cm
Package Height: 5.5cm
Gross Weight: 1.00Kg
Special Features: Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors.‚Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C.‚Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+.‚Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS Wi-Fi moving antennas‚1 x I/O Shield‚1 x Screw package for M.2 SSD‚1 x User guide
Keywords: Motherboard‚1700‚H610‚DDR5‚WiFi‚Bluetooth
|
