Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1CK0-M1EAY0
EAN Number: 4711081937449
|
Stock Status |
Currently 4 available in stock.
We have more stock arriving: 19/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£182.36 exc vat |
| 10 - 19 units |
£181.91 exc vat |
| 20 - 49 units |
£181.45 exc vat |
| 50 - 99 units |
£180.99 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

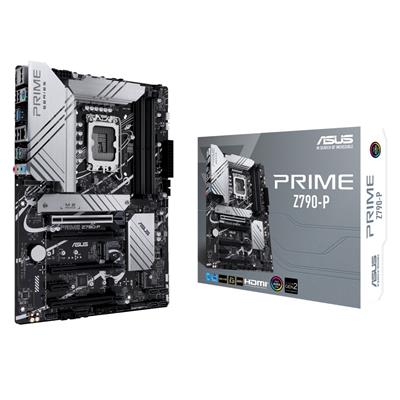

Product Title: ASUS PRIME Z790-P (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122538
Manufacturers Part Code: 90MB1CK0-M1EAY0
Product Name: ASUS PRIME Z790-P (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: PRIME Z790-P
EAN: 4711081937449
UPC: 195553937443
Package Type: Retail
Warranty: 3 Years
BIOS: 192 (128+64) Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel Z790
CPU Interface: Socket 1700
CPU Support: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P/HelpDesk_QVL_CPU/
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7200+ (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 3
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: 1 x Realtek 2.5Gb Ethernet
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Vertical M.2 slot (Key E)
24-pin ATX Power: 1
8-pin ATX Power: 1
4-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 1
Thunderbolt Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 3 x Addressable Gen 2 Headers‚2 x Aura RGB Headers‚1 x Clear CMOS Header
Form Factor: Standard ATX
Product Width: 234mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 1.58Kg
Special Features: Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors.‚Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery.‚Next-gen connectivity: DDR5 memory, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt (USB4) header support, 3 PCIe 4.0 M.2.‚Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.‚Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II.
Package Contents: Motherboard‚2 x SATA 6Gb/s Cables‚1 x I/O Shield‚1 x M.2 Rubber Package‚2 x Screw Packages for M.2 SSD‚1 x User Guide
Keywords: Motherboard‚1700‚Z790‚DDR5
|
