Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1C70-M0EAY0
EAN Number: 4711387078174
|
Stock Status |
Currently 8 available in stock.
We have more stock arriving: 19/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£625.81 exc vat |
| 10 - 19 units |
£624.24 exc vat |
| 20 - 49 units |
£622.68 exc vat |
| 50 - 99 units |
£621.11 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

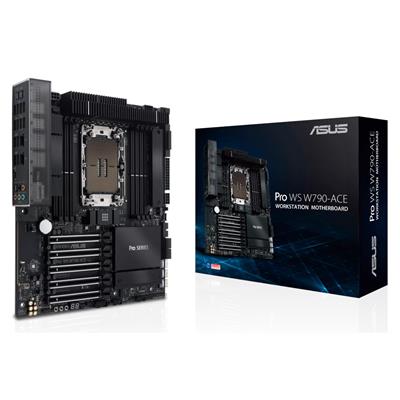

Product Title: ASUS Pro WS W790-ACE Workstation (Socket 4677/W790/DDR5/S-ATA 6Gb/s/CEB)
KSN SKU Code: MB123405
Manufacturers Part Code: 90MB1C70-M0EAY0
Product Name: ASUS Pro WS W790-ACE Workstation (Socket 4677/W790/DDR5/S-ATA 6Gb/s/CEB)
Web Address: www.asus.com
Model Number: PRO WS W790-ACE
EAN: 4711387078174
UPC: 197105078178
Package Type: Retail
Warranty: 3 Years
BIOS: 512 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel W790
CPU Interface: Socket 4677
CPU Support: https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w790-ace/helpdesk_qvl_cpu/?model2Name=Pro-WS-W790-ACE
RAM Technology: DDR5 (Quad Channel)
RAM Slots: 8 x 288-pin
RAM Speeds: Up to DDR5 6800 (O.C.)
Max. Memory Support: 2048GB
PCI Express 5.0 x16: 5
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: 1 x Marvell AQtion 10Gb Ethernet‚1 x Intel 2.5Gb Ethernet
On-Board Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Back USB 2.0 Port(s): 8
Back USB 3.2 Port(s) Type-A Gen 2: 4
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back LAN Port(s): 2
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS
24-pin ATX Power: 2
8-pin ATX Power: 4
PCIe Power Connector(s): 1 x 8-pin
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x BMC Header‚1 x Thermal Sensor Header‚1 x VROC Key Header
Internal Button(s): 1 x FlexKey‚1 x ReTry‚1 x Start
Form Factor: CEB
Product Width: 266.7mm
Product Length: 305mm
Package Width: 30.6cm
Package Length: 36.7cm
Package Height: 11cm
Gross Weight: 3.11Kg
Special Features: Intel LGA 4677 socket: Ready for Intel Xeon W-3400 and W-2400 processors.‚CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC).‚Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G and 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C and 3 SlimSAS.‚Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software - ASUS Control Centre Express.‚Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate.‚Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x Q-connector‚1 x M.2 Rubber Package(s)‚1 x M.2 backplate Rubber Package(s)‚1 x CPU guard for LGA 4677 E1A‚1 x CPU guard for LGA 4677 E1B‚1 x ACC Express Activation Key Card‚1 x User guide
Keywords: Motherboard‚4677‚W790‚DDR5‚CEB
|
