Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1FW0-M0EAY0
EAN Number: 4711387441145
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£980.36 exc vat |
| 10 - 19 units |
£977.91 exc vat |
| 20 - 49 units |
£975.45 exc vat |
| 50 - 99 units |
£972.99 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

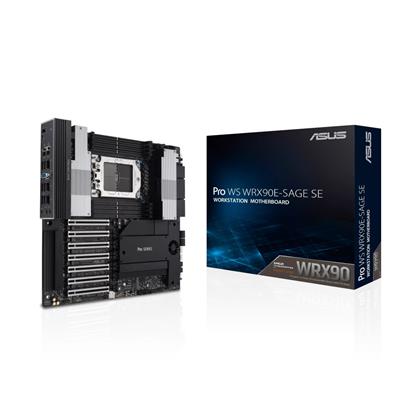

Product Title: ASUS Pro WS WRX90E-SAGE SE (Socket sTR5/WRX90/DDR5/S-ATA 6Gb/s/EEB)
KSN SKU Code: MB124574
Manufacturers Part Code: 90MB1FW0-M0EAY0
Product Name: ASUS Pro WS WRX90E-SAGE SE (Socket sTR5/WRX90/DDR5/S-ATA 6Gb/s/EEB)
Web Address: www.asus.com
Model Number: PRO WS WRX90E-SAGE SE
EAN: 4711387441145
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset: AMD WRX90
CPU Interface: Socket sTR5
CPU Support: https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-wrx90e-sage-se/helpdesk_qvl_cpu?model2Name=Pro-WS-WRX90E-SAGE-SE
RAM Technology: DDR5 (8 Channel)
RAM Slots: 8 x 288-pin
PCI Express 5.0 x16: 7
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
SAS Port(s): 2 x SlimSAS
M.2 Socket(s): 4 x PCIe Gen 5.0 x4
On-Board LAN: 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)‚1 x Intel dual 10Gb Ethernet
On-Board Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 1
Back USB 10Gbps Port(s) Type-A: 6
Back Mini DisplayPort(s): 2
Back LAN Port(s): 2
Back Audio Jack(s): 2
Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 2
PCIe Power Connector(s): 2 x 8-pin
USB 2.0 Header(s): 2
USB 5Gbps Header(s): 1
USB 20Gbps Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x 8-pin PCIe to CPU Power Connectors‚7 x ProbeIt Measurement points‚1 x Thermal Sensor Header
Internal Button(s): 1 x FlexKey‚1 x ReTry‚1 x RSVD Switch‚1 x Slow Mode Switch‚1 x Safe Boot‚1 x Start
Form Factor: EEB
Product Width: 305mm
Product Length: 330mm
Package Width: 36cm
Package Length: 37.5cm
Package Height: 8cm
Gross Weight: 4.06Kg
Special Features: AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.‚Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.‚CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).‚Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.‚PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.‚Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Centre Express software for real-time monitoring and management.‚Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Package Contents: Motherboard‚2 x PCIe 8-pin to CPU Power Cables‚1 x 24-pin Power Cable (Y cable)‚2 x Mini DisplayPort Cables‚4 x SATA 6Gb/s Cables‚1 x Thermistor Cable Pack‚1 x Q-Connector‚1 x M.2 Q-Latch Package‚1 x AMI License Sticker‚4 x M.2 Rubber Packages‚1 x Screw Package for M.2 Key E‚1 x ACC Express Activation Key Card‚1 x Quick Start Guide
Keywords: Motherboard‚sTR5‚WRX90‚DDR5‚EEB
Back USB 40Gbps Port(s) Type-C: 2
|
