Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1CN0-M0EAY0
EAN Number: 4711081941033
|
Stock Status |
Currently 99 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£259.87 exc vat |
| 10 - 19 units |
£259.22 exc vat |
| 20 - 49 units |
£258.57 exc vat |
| 50 - 99 units |
£257.91 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

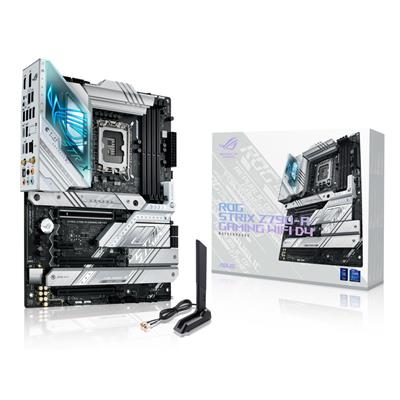

Product Title: ASUS ROG STRIX Z790-A GAMING WIFI D4 (Socket 1700/Z790/DDR4/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122530
Manufacturers Part Code: 90MB1CN0-M0EAY0
Product Name: ASUS ROG STRIX Z790-A GAMING WIFI D4 (Socket 1700/Z790/DDR4/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: ROG STRIX Z790-A GAMING WIFI D4
EAN: 4711081941033
UPC: 195553941037
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS
Chipset: Intel Z790
CPU Interface: Socket 1700
CPU Support: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-a-gaming-wifi-d4-model/helpdesk_qvl_cpu/
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 5333 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 2
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 3 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: 1 x Intel 2.5Gb Ethernet‚ASUS LANGuard
Wireless NIC: Wi-Fi 6E
Wireless Technology: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)‚Supports 2.4/5/6GHz frequency band
Bluetooth: v5.3
On-Board Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2x2: 1
Front Panel Audio Connector: 1
Internal Other Port(s): 3 x Addressable Gen 2 Headers‚1 x Aura RGB Header‚1 x CPU Over Voltage Jumper‚1 x Thermal Sensor Header‚1 x Thunderbolt Header
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27.3cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 2.27Kg
Special Features: Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors 12th Gen Intel Core, Pentium Gold and Celeron Processors.‚Robust Power Solution: 16 + 1 power solution rated for 70A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.‚Optimized VRM Thermals: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads.‚Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks.‚Abundant Connectivity: USB 3.2 Gen 2x2 Type-C rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4.‚High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.‚Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance.‚Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III.‚Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers.‚DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack button, BIOS FlashBack LED, and Clear CMOS button.‚Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86.
Package Contents: Motherboard‚2 x SATA 6Gb/s Cables ‚1 x Thermal Pad for M.2‚1 x ASUS Wi-Fi Moving Antennas ‚1 x Cable Ties Package‚1 x M.2 Backplate Q-Latch Package‚1 x M.2 Q-Latch Package‚1 x ROG Key Chain‚1 x ROG Strix Stickers‚1 x ROG Strix Thank You Card‚2 x M.2 Rubber Packages‚1 x M.2 Backplate Rubber ‚1 x User Guide
Keywords: Motherboard‚1700‚Z790‚DDR4‚Wi-Fi‚Bluetooth
|
