Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1FM0-M0EAY0
EAN Number: 4711387356548
|
Stock Status |
Currently 61 available in stock.
We have more stock arriving: 15/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£354.58 exc vat |
| 10 - 19 units |
£353.69 exc vat |
| 20 - 49 units |
£352.8 exc vat |
| 50 - 99 units |
£351.91 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

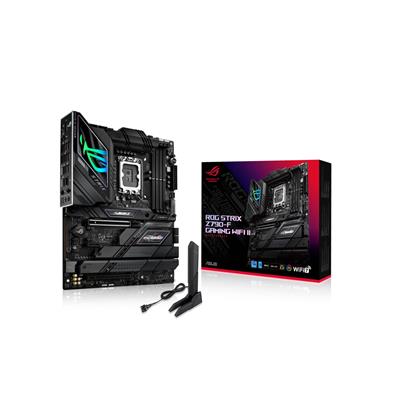

Product Title: ASUS ROG STRIX Z790-F GAMING WIFI II (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB124174
Manufacturers Part Code: 90MB1FM0-M0EAY0
Product Name: ASUS ROG STRIX Z790-F GAMING WIFI II (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.asus.com
Model Number: ROG STRIX Z790-F GAMING WIFI II
EAN: 4711387356548
UPC: 197105356542
Package Type: Retail
Warranty: 3 Years
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset: Intel Z790
CPU Interface: Socket 1700
CPU Support: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/helpdesk_qvl_cpu/
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 6400 (O.C.)
Max. Memory Support: 192GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 4 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: 1 x Intel 2.5Gb Ethernet‚ASUS LANGuard
Wireless NIC: Wi-Fi 7
Wireless Technology: x2 Wi-Fi 7 (802.11be)‚Supports 2.4/5/6GHz frequency band‚Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
Bluetooth: v5.4
On-Board Audio: ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 6
Back USB 5Gbps Port(s) Type-A: 4
Back USB 10Gbps Port(s) Type-A: 2
Back USB 10Gbps Port(s) Type-C: 1
Back USB 20Gbps Port(s) Type-C: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 5Gbps Header(s): 1
USB 20Gbps Header(s): 1
Thunderbolt Header(s): 1
Front Panel Audio Connector: 1
Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x Aura RGB header‚1 x CPU Over Voltage jumper‚1 x Thermal Sensor header
Internal Button(s): 1 x Start button
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 35.5cm
Package Height: 7cm
Gross Weight: 2.19Kg
Special Features: ROG Exclusive Software‚ASUS Exclusive Software‚UEFI BIOS
Package Contents: Motherboard‚2 x SATA 6Gb/s cables ‚1 x Thermal pad for M.2‚1 x ASUS Wi-Fi Q-Antenna‚1 x Cable ties package‚1 x M.2 backplate Q-Latch package‚1 x M.2 Q-Latch package‚1 x ROG key chain‚1 x ROG Strix stickers‚2 x M.2 Rubber packages‚1 x M.2 backplate Rubber package‚1 x QUICK START GUIDE
Keywords: Motherboard‚1700‚Z790‚DDR5‚WiFi‚Bluetooth
|
