Condition |
Brand New
|
Product Numbers |
Part Code: 90MB1JV0-M0EAY0
EAN Number: 4711387783092
|
Stock Status |
Currently 4 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£221.36 exc vat |
| 10 - 19 units |
£220.8 exc vat |
| 20 - 49 units |
£220.25 exc vat |
| 50 - 99 units |
£219.69 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

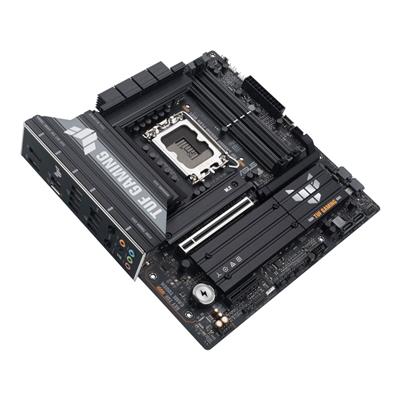

Product Title: ASUS TUF GAMING B860M-PLUS WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126204
Manufacturers Part Code: 90MB1JV0-M0EAY0
Product Name: ASUS TUF GAMING B860M-PLUS WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.asus.com
Model Number: TUF GAMING B860M-PLUS WIFI
EAN: 4711387783092
UPC: 197105783096
Package Type: Retail
Warranty: 3 Years
BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Chipset: Intel B860
CPU Interface: Socket 1851
CPU Support: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860m-plus-wifi/helpdesk_qvl_cpu?model2Name=TUF-GAMING-B860M-PLUS-WIFI
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8800 (O.C.)
Max. Memory Support: 256GB
PCI Express 5.0 x16: 1
PCI Express 4.0 x4: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚2 x PCIe Gen 4.0 x4
LAN Speed: 1 x Realtek 2.5Gb Ethernet‚TUF LANGuard
Wireless NIC: Wi-Fi 7
Wireless Technology: 2x2 Wi-Fi 7 (802.11be)‚Supports 2.4/5/6GHz frequency band‚Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth: v5.4
On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 1
Back USB 5Gbps Port(s) Type-A: 4
Back USB 10Gbps Port(s) Type-A: 2
Back USB 20Gbps Port(s) Type-C: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): 1 x Wi-Fi Module
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 1
USB 5Gbps Header(s): 1
USB 10Gbps Header(s): 1
Thunderbolt Header(s): 1
Front Panel Audio Connector: 1
Internal Other Port(s): 3 x Addressable Gen 2 headers
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27.5cm
Package Length: 27.5cm
Package Height: 7cm
Gross Weight: 1.68Kg
Special Features: ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS WiFi Q-Antenna‚2 x M.2 Rubber Packages‚1 x TUF Gaming sticker‚1 x Screw package for M.2 SSD‚1 x Quick start guide
Keywords: Motherboard‚B860‚1851‚DDR5‚Wi-Fi 7
|
