Condition |
Brand New
|
Product Numbers |
Part Code: A520M K V2
EAN Number: 4719331852771
|
Stock Status |
| We have more stock arriving: 13/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£40.49 exc vat |
| 10 - 19 units |
£40.39 exc vat |
| 20 - 49 units |
£40.29 exc vat |
| 50 - 99 units |
£40.19 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

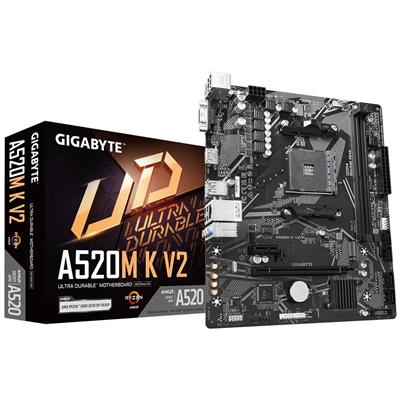

Product Title: Gigabyte A520M K V2 (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB123191
Manufacturers Part Code: A520M K V2
Product Name: Gigabyte A520M K V2 (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)
Web Address: www.gigabyte.com
Model Number: A520M K V2
EAN: 4719331852771
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD A520
CPU Interface: Socket AM4
CPU Support: https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR4 5100 (O.C.)
Max. Memory Support: 64GB
PCI Express 3.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 3.0 x4/SATA
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Form Factor: Micro ATX
Product Width: 198mm
Product Length: 233mm
Package Width: 23.5cm
Package Length: 27cm
Package Height: 5.5cm
Gross Weight: 0.65Kg
Special Features: Supports AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series and Ryzen 3000 Series Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.‚PCIe Gen3 x4 M.2 with PCIe NVMe and SATA mode support.‚GbE LAN with Bandwidth Management.‚8-Channel HD Audio with High Quality Audio Capacitors.‚Rear HDMI and D-sub for Multi-display Support.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚GIGABYTE APP Centre, Simple and Easy Use.
Package Contents: Motherboard‚Manual‚1 x SATA cable‚IO Shield
Keywords: Motherboard‚AM4‚DDR4‚M-ATX‚Micro ATX
|
