Condition |
Brand New
|
Product Numbers |
Part Code: A620M H
EAN Number: 4719331855512
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£63.45 exc vat |
| 10 - 19 units |
£63.29 exc vat |
| 20 - 49 units |
£63.13 exc vat |
| 50 - 99 units |
£62.97 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

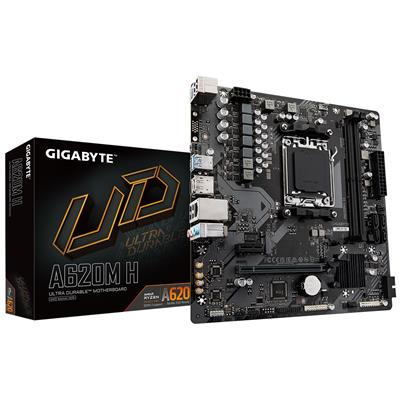

Product Title: Gigabyte A620M H (Socket AM5/A620/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB123710
Manufacturers Part Code: A620M H
Product Name: Gigabyte A620M H (Socket AM5/A620/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: A620M H
EAN: 4719331855512
UPC: 889523038017
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD A620
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/A620M-H-rev-10/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 6400 (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Addressable LED Strip Header‚1 x RGB LED Strip Header
Form Factor: Micro ATX
Product Width: 225mm
Product Length: 230mm
Package Width: 26.5cm
Package Length: 26.5cm
Package Height: 5.5cm
Gross Weight: 0.82Kg
Special Features: AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.‚Unparalleled Performance: 5+2+2 Phases Digital VRM Solution.‚Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.‚SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector.‚EZ-Latch: PCIe x16 Slot with Quick Release Design.‚Fast Networks: GbE LAN.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard‚Manual‚1 x SATA cable‚IO Shield
Keywords: Motherboard‚AM5‚A620‚DDR5‚HDMI‚DisplayPort
|
