Condition |
Brand New
|
Product Numbers |
Part Code: B550M DS3H
EAN Number: 4719331809416
|
Stock Status |
| We have more stock arriving: 13/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£68.87 exc vat |
| 10 - 19 units |
£68.69 exc vat |
| 20 - 49 units |
£68.52 exc vat |
| 50 - 99 units |
£68.35 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

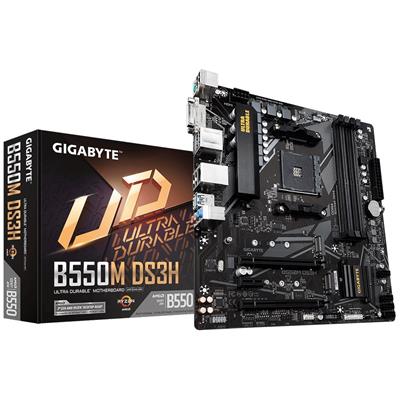

Product Title: Gigabyte B550M DS3H (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB119296
Manufacturers Part Code: B550M DS3H
Product Name: Gigabyte B550M DS3H (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B550M DS3H
EAN: 4719331809416
UPC: 889523022917
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B550
CPU Interface: Socket AM4
CPU Support: https://www.gigabyte.com/uk/Motherboard/B550M-DS3H-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4733 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 2
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 2
On-Board LAN: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
On-Board Audio: Realtek ALC887 codec
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 5
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back DVI-D Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 1
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers‚1 x CPU cooler LED Strip/RGB LED Strip Header
Internal Button(s): 1 x Q-Flash Plus
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 26.5cm
Package Length: 27cm
Package Height: 5.5cm
Gross Weight: 2.02Kg
Special Features: Supports 3rd Gen AMD Ryzen Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.‚5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETs‚Ultra-Durable PCIe 4.0 Ready x16 Slot.‚Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.‚High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.‚GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management.‚Rear HDMI and DVI Support.‚RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Anti-Sulphur Resistors Design.
Package Contents: B550M DS3H Motherboard‚2 x SATA Cables‚Support Disk‚IO Shield‚Manual
Keywords: Motherboard‚AM4‚B550‚DDR4‚HDMI‚PCIe‚M-ATX‚Micro ATX
|
