Condition |
Brand New
|
Product Numbers |
Part Code: B550M DS3H AC
EAN Number: 4719331810962
|
Stock Status |
Currently 52 available in stock.
We have more stock arriving: 13/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£77.53 exc vat |
| 10 - 19 units |
£77.33 exc vat |
| 20 - 49 units |
£77.14 exc vat |
| 50 - 99 units |
£76.94 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

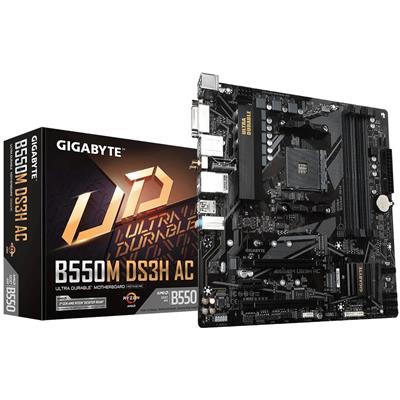

Product Title: Gigabyte B550M DS3H AC (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB121036
Manufacturers Part Code: B550M DS3H AC
Product Name: Gigabyte B550M DS3H AC (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B550M DS3H AC
EAN: 4719331810962
UPC: 889523024416
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B550
CPU Interface: Socket AM4
CPU Support: https://www.gigabyte.com/uk/Motherboard/B550M-DS3H-AC-rev-1x/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4733 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x4: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 6
RAID: Raid 0/1/10
M.2 Socket(s): 1 x SATA/PCIe 3.0 x4‚1 x SATA/PCIe 4.0 x4
On-Board LAN: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Wireless NIC: Intel Wi-Fi AC 3168
Wireless Technology: WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
Bluetooth: v4.2
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back DVI-D Port(s): 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x SMA antenna connectors (1T1R)
24-pin ATX Power: 1
8-pin ATX Power: 1
Internal Other Port(s): 2 x system fan headers‚2 x addressable LED strip headers
Internal Button(s): 1 x Q-Flash Plus button
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27cm
Package Length: 27cm
Package Height: 7cm
Gross Weight: 1.03Kg
Special Features: Supports AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series and Ryzen 3000 Series Processors.‚Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.‚5+3 Phases Pure Digital VRM Solution with Low RDS (on) MOSFETs.‚Ultra-Durable PCIe 4.0 Ready x16 Slot.‚Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.‚Onboard Intel® Dual Band 802.11ac Wireless and BT 4.2 with WIFI Antenna.‚High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.‚GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management.‚Rear HDMI & DVI Support.‚RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.‚Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.‚Anti-Sulphur Resistors Design.
Package Contents: B550M DS3H AC‚Support Disk‚2 x SATA Cables‚Manual‚IO Shield‚2 x Antennas
Keywords: Motherboard‚AM4‚DDR4‚B550‚WiFi‚Bluetooth‚M-ATX‚Micro ATX
|
