Condition |
Brand New
|
Product Numbers |
Part Code: B650 EAGLE AX
EAN Number: 4719331860158
|
Stock Status |
Currently 249 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£121.37 exc vat |
| 10 - 19 units |
£121.06 exc vat |
| 20 - 49 units |
£120.76 exc vat |
| 50 - 99 units |
£120.45 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

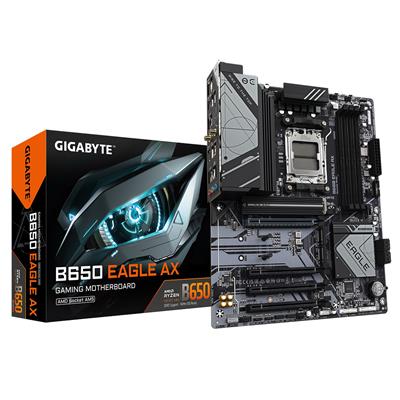

Product Title: Gigabyte B650 EAGLE AX (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB124642
Manufacturers Part Code: B650 EAGLE AX
Product Name: Gigabyte B650 EAGLE AX (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.gigabyte.com
Model Number: B650 EAGLE AX
EAN: 4719331860158
UPC: 889523041703
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/B650-EAGLE-AX/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7600 (O.C.)
Max. Memory Support: 192GB
PCI Express 3.0 x16: 3
PCI Express 4.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚2 x PCIe Gen 5.0 x4
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 6
Back USB 3.2 Port(s) Type-C Gen 1: 1
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x SMA antenna connectors
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 3
USB 3.2 Header(s) Gen 1: 2
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header
Internal Button(s): 1 x Q-Flash Plus
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 1.73Kg
Special Features: AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.‚Unparalleled Performance: 12+2+2 Phases Digital VRM Solution.‚Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.‚SuperSpeed Storage: 1 x PCIe 5.0 + 2 x PCIe 4.0 M.2 Connectors.‚Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and 25110 M.2 SSD Performance.‚EZ-Latch: PCIe x16 Slot with Quick Release Design.‚Fast Networks: Wi-Fi 6E 802.11ax and GbE LAN.‚Extended Connectivity: DP, HDMI, Rear USB 10Gb/s.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard
Keywords: Motherboard‚AM5‚B650‚DDR5
|
