Condition |
Brand New
|
Product Numbers |
Part Code: B650M S2H
EAN Number: 4719331856298
|
Stock Status |
Currently 42 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£75.59 exc vat |
| 10 - 19 units |
£75.4 exc vat |
| 20 - 49 units |
£75.21 exc vat |
| 50 - 99 units |
£75.02 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

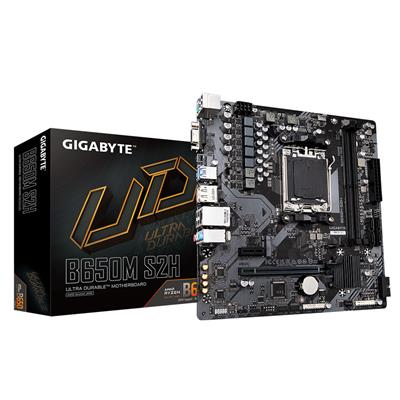

Product Title: Gigabyte B650M S2H (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB124644
Manufacturers Part Code: B650M S2H
Product Name: Gigabyte B650M S2H (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B650M S2H
EAN: 4719331856298
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/B650M-S2H-rev-10/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR5 6400 (O.C.)
Max. Memory Support: 96GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.1 Header(s) Gen 1: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Addressable LED strip header‚1 x RGB LED strip header
Form Factor: Micro ATX
Product Width: 225mm
Product Length: 230mm
Package Width: 26.5cm
Package Length: 37cm
Package Height: 5.5cm
Gross Weight: 0.84Kg
Special Features: AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.‚Unparalleled Performance: 5+2+2 Phases Digital VRM Solution.‚Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.‚SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector.‚EZ-Latch: PCIe x16 Slot with Quick Release Design.‚Fast Networks: GbE LAN.‚Extended Connectivity: DP, HDMI, D-Sub.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard
Keywords: Motherboard‚AM5‚B650‚DDR5‚Micro ATX‚M-ATX
|
