Condition |
Brand New
|
Product Numbers |
Part Code: B760 DS3H DDR4
EAN Number: 4719331850746
|
Stock Status |
Currently 22 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£87 exc vat |
| 10 - 19 units |
£86.78 exc vat |
| 20 - 49 units |
£86.57 exc vat |
| 50 - 99 units |
£86.35 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

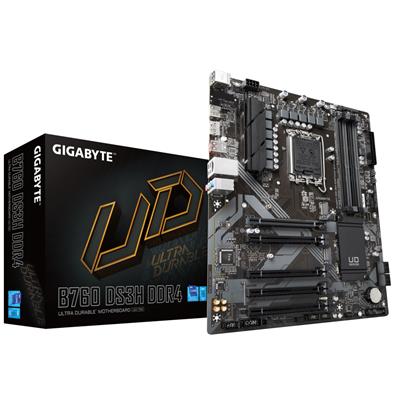

Product Title: Gigabyte B760 DS3H DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122871
Manufacturers Part Code: B760 DS3H DDR4
Product Name: Gigabyte B760 DS3H DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)
Web Address: www.gigabyte.com
Model Number: B760 DS3H DDR4
EAN: 4719331850746
UPC: 889523034866
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel B760 Express
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/B760-DS3H-DDR4-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 5333 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 4
PCI Express 4.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers
Internal Button(s): 1 x Q-Flash Plus‚1 x Reset
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 1.24Kg
Special Features: Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors.‚Unparalleled Performance: Hybrid 8+2+1 Phases Digital VRM Solution.‚Dual Channel DDR4: 4xDIMMs XMP Memory Module Support.‚Next Generation Storage: 2xPCIe 4.0 x4 M.2 Connectors.‚EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.‚Fast Networks: GbE LAN.‚Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard‚Manual‚2 x SATA cables‚M.2 screws‚IO Shield
Keywords: Motherboard‚1700‚B760‚DDR4
|
