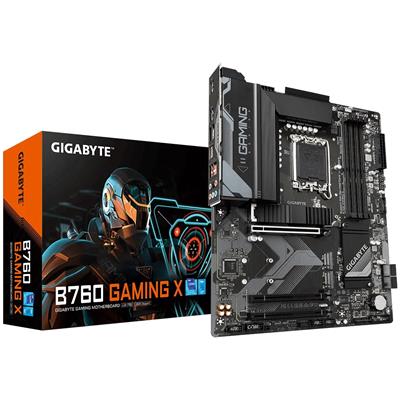

Gigabyte B760 GAMING X (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/ATX)
[MB125191]

Condition  Brand New Product Numbers  Part Code: B760 GAMING X  EAN Number: 4719331851989 Stock Status Currently 2 available in stock. We have more stock arriving: Delivery Price  Add to Cart for Instant Delivery Pricing  Quantity Price Break Discounts  5 - 9 units   £107.79 exc vat   10 - 19 units   £107.52 exc vat   20 - 49 units   £107.25 exc vat   50 - 99 units   £106.98 exc vat   100 or more units   * Negotiable *  Discounts Are Applied During Checkout Share Content

Product Title: Gigabyte B760 GAMING X (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/ATX)

KSN SKU Code: MB125191

Manufacturers Part Code: B760 GAMING X

Product Name: Gigabyte B760 GAMING X (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/ATX)

Web Address: www.gigabyte.com

Model Number: B760 GAMING X

EAN: 4719331851989

UPC: 889523035863

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: Intel B760 Express

CPU Interface: Socket 1700

CPU Support: https://www.gigabyte.com/Motherboard/B760-GAMING-X-rev-10/support#support-cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 7600 (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 2 x PCIe Gen 4.0 x4

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 5

Back USB 3.2 Port(s) Type-A Gen 1: 1

Back USB 3.2 Port(s) Type-C Gen 1: 1

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 6

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

USB 3.2 Header(s) Gen 2: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 2 x Addressable LED Strip Headers‚2 x RGB LED Strip Headers

Internal Button(s): 1 x Q-Flash Plus

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34cm

Package Height: 8cm

Gross Weight: 1.60Kg

Special Features: Supports Intel Core 14th/13th/12th processors.‚Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution.‚Dual Channel DDR5: 4 x DIMMs XMP Memory Module Support.‚Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors.‚Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and M.2 SSD Performance‚EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.‚Fast Networks: 2.5GbE LAN.‚Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents: Motherboard‚Manual‚2 x SATA cables‚M.2 screws

Keywords: Motherboard‚1700‚B760‚DDR5‚ATX
