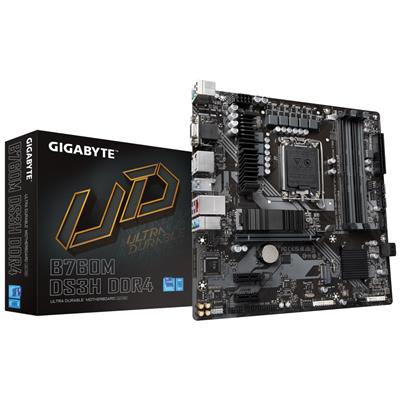

Gigabyte B760M DS3H DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)
[MB122883]

Condition  Brand New Product Numbers  Part Code: B760M DS3H DDR4  EAN Number: 4719331850876 Stock Status Currently 74 available in stock. We have more stock arriving: Delivery Price  Add to Cart for Instant Delivery Pricing  Quantity Price Break Discounts  5 - 9 units   £73.33 exc vat   10 - 19 units   £73.14 exc vat   20 - 49 units   £72.96 exc vat   50 - 99 units   £72.77 exc vat   100 or more units   * Negotiable *  Discounts Are Applied During Checkout Share Content

Product Title: Gigabyte B760M DS3H DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)

KSN SKU Code: MB122883

Manufacturers Part Code: B760M DS3H DDR4

Product Name: Gigabyte B760M DS3H DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address: www.gigabyte.com

Model Number: B760M DS3H DDR4

EAN: 4719331850876

UPC: 889523034606

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: Intel B760 Express

CPU Interface: Socket 1700

CPU Support: https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10/support#support-cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 5333 (O.C.)

Max. Memory Support: 128GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 2 x PCIe Gen 4.0 x4

On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 3

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 2

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Parallel Port Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 1 x Addressable LED Strip Header‚1 x RGB LED Strip Header

Internal Button(s): 1 x Q-Flash Plus‚1 x Reset

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 26.5cm

Package Length: 27cm

Package Height: 5.5cm

Gross Weight: 0.93Kg

Special Features: Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors.‚Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution.‚Dual Channel DDR4: 4 x DIMMs XMP Memory Module Support.‚Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.‚M.2 Thermal Guard: To Ensure M.2 SSD Performance.‚EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.‚Fast Networks: 2.5GbE LAN.‚Extended Connectivity: Rear USB-C 10Gb/s, DP, HDMI.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents: Motherboard‚Manual‚IO Shield‚2 x SATA cables

Keywords: Motherboard‚1700‚B760‚DDR4‚Micro ATX‚M-ATX
