Condition |
Brand New
|
Product Numbers |
Part Code: B760M DS3H AX DDR4
EAN Number: 4719331850869
|
Stock Status |
Currently 4 available in stock.
We have more stock arriving: 13/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£95.09 exc vat |
| 10 - 19 units |
£94.85 exc vat |
| 20 - 49 units |
£94.62 exc vat |
| 50 - 99 units |
£94.38 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

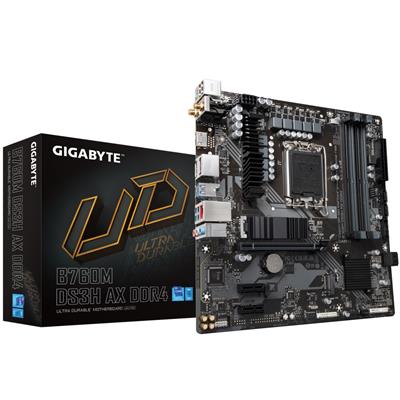

Product Title: Gigabyte B760M DS3H AX DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB122874
Manufacturers Part Code: B760M DS3H AX DDR4
Product Name: Gigabyte B760M DS3H AX DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B760M DS3H AX DDR4
EAN: 4719331850869
UPC: 889523034620
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel B760 Express
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/B760M-DS3H-AX-DDR4-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 5333 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4
On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6E
Wireless Technology: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands‚Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Bluetooth: v5.2
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 3
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s): 1 x Addressable LED Strip Header‚1 x RGB LED Strip Header
Internal Button(s): 1 x Q-Flash Plus‚1 x Reset
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Package Width: 27cm
Package Length: 27.5cm
Package Height: 7cm
Gross Weight: 1.04Kg
Special Features: Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors.‚Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution.‚Dual Channel DDR4: 4xDIMMs XMP Memory Module Support.‚Next Generation Storage: 2xPCIe 4.0 x4 M.2 Connectors.‚M.2 Thermal Guard: To Ensure M.2 SSD Performance.‚EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.‚Fast Networks: 2.5GbE LAN and Intel Wi-Fi 6E 802.11ax.‚Extended Connectivity: Rear USB-C 10Gb/s, DP, HDMI.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Package Contents: Motherboard‚Manual‚IO Shield‚2 x SATA cables‚1 x Antenna
Keywords: Motherboard‚1700‚B760‚DDR4‚Wi-Fi‚Bluetooth‚Micro ATX‚M-ATX
|
