Condition |
Brand New
|
Product Numbers |
Part Code: B850 AI TOP
EAN Number: 4719331866570
|
Stock Status |
Currently 8 available in stock.
We have more stock arriving: 09/03/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£326.2 exc vat |
| 10 - 19 units |
£325.38 exc vat |
| 20 - 49 units |
£324.56 exc vat |
| 50 - 99 units |
£323.75 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

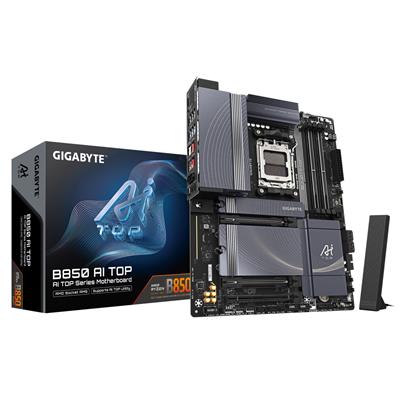

Product Title: Gigabyte B850 AI TOP (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB126176
Manufacturers Part Code: B850 AI TOP
Product Name: Gigabyte B850 AI TOP (AM5/B850/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.gigabyte.com
Model Number: B850 AI TOP
EAN: 4719331866570
UPC: 889523045893
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B850
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/B850-AI-TOP/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8600 (O.C.)
Max. Memory Support: 256GB
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 2 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
On-Board LAN: 2 x Marvell AQtion AQC113C 10GbE LAN chips‚(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 7
Wireless Technology: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.4
On-Board Audio: Realtek ALC1220 CODEC
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-C Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 3
Back DVI-I Port(s): 1
Back LAN Port(s): 2
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2: 2
USB 3.2 Header(s) Gen 2x2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header‚1 x Noise detection header‚2 x Temperature sensor headers
Internal Button(s): 1 x Power‚1 x Reset
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 2.69Kg
Special Features: Training your own AI on your desk.‚DDR5 OC up to 8600MT/s.‚AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.‚Digital twin 16+2+2 phases VRM solution.‚Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.‚WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.‚EZ-Latch Plus: PCIe and M.2 slots with Quick Release and Screwless Design.‚EZ-Latch Click: M.2 heatsinks with screwless design.‚Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.‚New Power Monitor in HWinfo for real-time monitoring on CPU power phases.‚Ultra-Fast Storage: 3 x M.2 slots, including 2 x PCIe 5.0 x4.‚Efficient Thermal: VRM Thermal Armor Advanced with M.2 Thermal Guard.‚Blazing Fast Networks: Dual 10GbE LAN and Wi-Fi 7 and directional Ultra-high gain antenna.‚Extended Connectivity: Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMI.‚High-Res Audio: ALC1220 and High-End Audio Capacitor.‚Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability.‚PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
Package Contents: B850 AI TOP Motherboard‚Manual‚Quick Installation Guide‚1 x Antenna‚2 x SATA cables‚1 x Noise detection cable‚2 x Thermistor cables‚1 x G Connector‚1 x M.2 thermal pad‚2 x Packs of M.2 thick/thin rubber pads
Keywords: Motherboard‚AM5‚B850‚Wi-Fi
|
