Condition |
Brand New
|
Product Numbers |
Part Code: H510M S2H V3
EAN Number: 4719331855420
|
Stock Status |
Currently 20 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£48.24 exc vat |
| 10 - 19 units |
£48.12 exc vat |
| 20 - 49 units |
£48 exc vat |
| 50 - 99 units |
£47.88 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

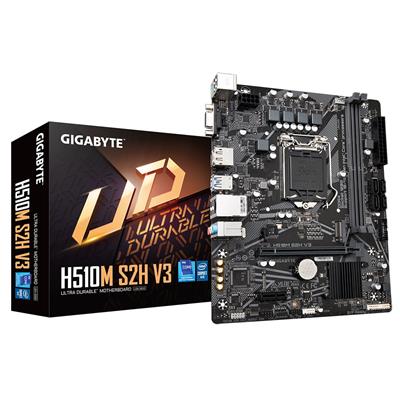

Product Title: Gigabyte H510M S2H V3 (Socket 1200/H510 Express/DDR4/S-ATA 600/Micro ATX)
KSN SKU Code: MB123719
Manufacturers Part Code: H510M S2H V3
Product Name: Gigabyte H510M S2H V3 (Socket 1200/H510 Express/DDR4/S-ATA 600/Micro ATX)
Web Address: www.gigabyte.com
Model Number: H510M S2H V3
EAN: 4719331855420
UPC: 889523037881
Package Type: Retail
Warranty: 3 Years
Chipset: Intel H470 Express
CPU Interface: Socket 1200
CPU Support: https://www.gigabyte.com/Motherboard/H510M-S2H-V3-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR4 3200
Max. Memory Support: 64GB
PCI Express 3.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
M.2 Socket(s): 1 x SATA/PCIe 3.0 x4
On-Board LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 1
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x RGB LED strip header
Form Factor: Micro ATX
Product Width: 185mm
Product Length: 226mm
Package Width: 23cm
Package Length: 27cm
Package Height: 5.2xm
Gross Weight: 0.69Kg
Special Features: Supports 11th/10th Gen Intel Core Processors.‚Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs.‚8-Channel HD Audio with High Quality Audio Capacitors.‚NVMe PCIe Gen3 x4 2280 M.2 Connector.‚GbE LAN with Bandwidth Management.‚Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.‚GIGABYTE APP Centre, Simple and Easy Use.‚Anti-Sulphur Resistors Design
Package Contents: Motherboard‚Support Disk‚2 x SATA cables‚Manual‚I/O Shield
Keywords: Motherboard‚H470‚1200‚DDR4‚M-ATX‚Micro ATX
|
