Condition |
Brand New
|
Product Numbers |
Part Code: H610M S2H V3 DDR4
EAN Number: 4719331859732
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£51.23 exc vat |
| 10 - 19 units |
£51.1 exc vat |
| 20 - 49 units |
£50.97 exc vat |
| 50 - 99 units |
£50.85 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

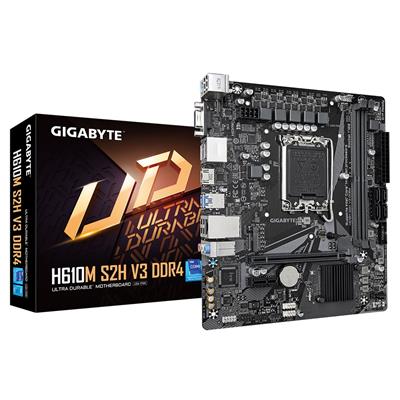

Product Title: Gigabyte H610M S2H V3 DDR4 (Socket 1700/H610 Express/DDR4/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB125062
Manufacturers Part Code: H610M S2H V3 DDR4
Product Name: Gigabyte H610M S2H V3 DDR4 (Socket 1700/H610 Express/DDR4/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: H610M S2H V3 DDR4
EAN: 4719331859732
UPC: 889523040928
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel H610 Express
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/H610M-S2H-V3-DDR4-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x 288-pin
RAM Speeds: Up to DDR4 3200
Max. Memory Support: 64GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
M.2 Socket(s): 1 x PCIe Gen 3.0 x4
LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x RGB LED strip header
Form Factor: Micro ATX
Product Width: 223mm
Product Length: 193mm
Package Width: 24cm
Package Length: 27cm
Package Height: 5cm
Gross Weight: 0.71Kg
Special Features: Supports Intel Core 14th/ 13th /12th processors.‚Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs.‚4+1+1 Hybrid Digital VRM Design.‚GbE LAN with Bandwidth Management.‚NVMe PCIe 3.0 x4 M.2.‚2 x DisplayPort / HDMI / D-Sub Ports for Multiple Display.‚High Quality Audio Capacitors and Audio Noise Guard.‚Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚GIGABYTE APP Centre, Simple and Easy Use.‚Anti-Sulphur Resistors Design.
Package Contents: Motherboard
Keywords: Motherboard‚1700‚H610‚DDR4‚M-ATX‚Micro ATX
|
