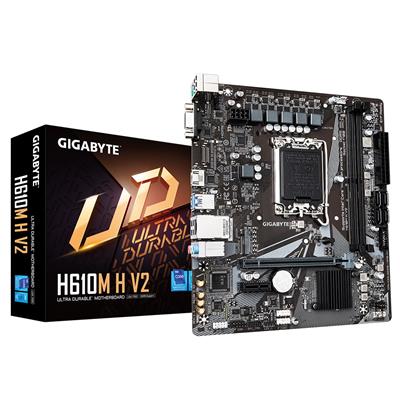

Gigabyte H610M H V2 (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)
[MB125240]

Condition  Brand New Product Numbers  Part Code: H610M H V2  EAN Number: 4719331859985 Stock Status We have more stock arriving: Delivery Price  Add to Cart for Instant Delivery Pricing  Quantity Price Break Discounts  5 - 9 units   £57.17 exc vat   10 - 19 units   £57.03 exc vat   20 - 49 units   £56.89 exc vat   50 - 99 units   £56.74 exc vat   100 or more units   * Negotiable *  Discounts Are Applied During Checkout Share Content

Product Title: Gigabyte H610M H V2 (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

KSN SKU Code: MB125240

Manufacturers Part Code: H610M H V2

Product Name: Gigabyte H610M H V2 (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address: www.gigabyte.com

Model Number: H610M H V2

EAN: 4719331859985

UPC: 889523040980

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 128 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: Intel H610 Express

CPU Interface: Socket 1700

CPU Support: https://www.gigabyte.com/Motherboard/H610M-H-V2-rev-10/support#support-cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 2 x 288-pin

RAM Speeds: Up to DDR5 5600 (O.C.)

Max. Memory Support: 96GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 1

S-ATA 6Gb/s Port(s): 4

M.2 Socket(s): 1 x PCIe Gen 3.0 x4/SATA

LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 2

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 1 x RGB LED Strip Header

Form Factor: Micro ATX

Product Width: 196mm

Product Length: 223mm

Package Width: 23.5cm

Package Length: 27cm

Package Height: 5.1cm

Gross Weight: 0.71Kg

Special Features: Supports Intel Core 14th/ 13th /12th processors.‚Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs.‚4+1+1 Hybrid Digital VRM Design.‚GbE LAN with Bandwidth Management.‚NVMe PCIe 3.0 x4 M.2.‚High Quality Audio Capacitors and Audio Noise Guard.‚Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚GIGABYTE APP Centre, Simple and Easy Use.‚Anti-Sulphur Resistors Design.

Package Contents: Motherboard

Keywords: Motherboard‚1700‚H610‚DDR5‚M-ATX‚Micro ATX
