Condition |
Brand New
|
Product Numbers |
Part Code: Z790 AORUS PRO X WIFI7
EAN Number: 4719331860141
|
Stock Status |
Currently 18 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£260.46 exc vat |
| 10 - 19 units |
£259.8 exc vat |
| 20 - 49 units |
£259.15 exc vat |
| 50 - 99 units |
£258.5 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

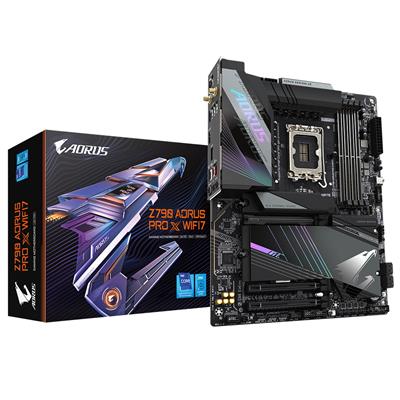

Product Title: Gigabyte Z790 AORUS PRO X WIFI7 (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB125186
Manufacturers Part Code: Z790 AORUS PRO X WIFI7
Product Name: Gigabyte Z790 AORUS PRO X WIFI7 (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)
Web Address: www.gigabyte.com
Model Number: Z790 AORUS PRO X WIFI7
EAN: 4719331860141
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel Z790 Express
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/Z790-AORUS-PRO-X-WIFI7/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8266 (O.C.)
Max. Memory Support: 192GB
PCI Express 3.0 x16: 1
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚3 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
LAN Speed: Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 7
Wireless Technology: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth: v5.3
On-Board Audio: Realtek ALC1220-VB CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 2
Back S/PDIF Output Port(s): 1
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
USB 3.2 Header(s) Gen 2: 1
USB 3.2 Header(s) Gen 2x2: 1
Thunderbolt AIC Connector(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 3 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header‚1 x Noise detection header‚2 x Temperature sensor headers
Internal Button(s): 1 x Q-Flash Plus‚1 x Reset
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27cm
Package Length: 34.5cm
Package Height: 8cm
Gross Weight: 2.28Kg
Special Features: Supports Intel Core 14th and 13th processors.‚Digital twin 18+1+2 phases VRM solution.‚Dual Channel DDR5: 4 x DIMMs with XMP 3.0 memory module support.‚PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.‚EZ-Latch Click: M.2 heatsinks with screwless design.‚EZ-Latch Plus: M.2 slots with quick release design.‚Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.‚UC BIOS: User-Centred intuitive UX with Quick Access function.‚Ultra-Fast Storage: 5 x M.2 slots, including 1 x PCIe 5.0 x4.‚Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL.‚Fast Networking: 5GbE LAN and Wi-Fi 7 with Ultra-high gain antenna.‚Extended Connectivity: HDMI, Front and Rear USB-C 20Gb/s.‚High-Res Audio: ALC1220 and Audiophile Grade Capacitors.
Package Contents: Motherboard
Keywords: Motherboard‚1700‚Z790‚DDR5‚WiFi‚Bluetooth
|
