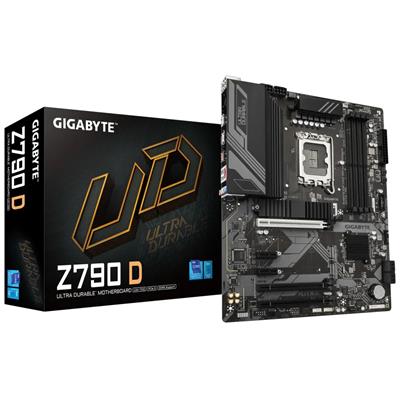

Gigabyte Z790 D (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)
[MB125190]

Condition  Brand New Product Numbers  Part Code: Z790 D  EAN Number: 4719331861186 Stock Status Currently 9 available in stock. We have more stock arriving: Delivery Price  Add to Cart for Instant Delivery Pricing  Quantity Price Break Discounts  5 - 9 units   £120.49 exc vat   10 - 19 units   £120.19 exc vat   20 - 49 units   £119.88 exc vat   50 - 99 units   £119.58 exc vat   100 or more units   * Negotiable *  Discounts Are Applied During Checkout Share Content

Product Title: Gigabyte Z790 D (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)

KSN SKU Code: MB125190

Manufacturers Part Code: Z790 D

Product Name: Gigabyte Z790 D (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX)

Web Address: www.gigabyte.com

Model Number: Z790 D

EAN: 4719331861186

UPC: 889523042083

Package Type: Retail

Warranty: 3 Years

BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset: Intel Z790 Express

CPU Interface: Socket 1700

CPU Support: https://www.gigabyte.com/Motherboard/Z790-D-rev-10/support#support-cpu

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 7600 (O.C.)

Max. Memory Support: 192GB

PCI Express 3.0 x16: 1

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 2 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 2

Back USB 3.2 Port(s) Type-A Gen 1: 4

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

Thunderbolt AIC Connector(s): 2

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 2 x Addressable LED Strip Headers

Internal Button(s): 1 x Reset‚1 x Q-Flash Plus

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27cm

Package Length: 34cm

Package Height: 8cm

Gross Weight: 1.59Kg

Special Features: Supports Intel Core 14th/13th/12th processors.‚Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution.‚Dual Channel DDR5: 4 x DIMMs with XMP 3.0 Memory Module Support.‚Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors.‚Advanced Thermal Design and M.2 Thermal Guard: To Ensure VRM Power Stability and M.2 SSD Performance.‚EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.‚Fast Networks: 2.5GbE LAN.‚Extended Connectivity: DP, HDMI, Rear USB-C 10Gb/s.‚Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.‚Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents: Motherboard‚Manual‚2 x SATA Cables‚IO Shield‚M.2 screw(s)

Keywords: Motherboard‚1700‚Z790‚ATX
