Condition |
Brand New
|
Product Numbers |
Part Code: B840 GAMING PLUS WIFI
EAN Number:
|
Stock Status |
Currently 111 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£128.4 exc vat |
| 10 - 19 units |
£128.08 exc vat |
| 20 - 49 units |
£127.75 exc vat |
| 50 - 99 units |
£127.43 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

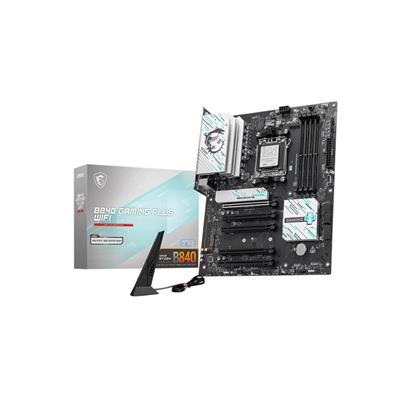

Product Title: MSI B840 GAMING PLUS WIFI (AM5/B840/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB126159
Manufacturers Part Code: B840 GAMING PLUS WIFI
Product Name: MSI B840 GAMING PLUS WIFI (AM5/B840/DDR5/S-ATA 6Gb/s/ATX)
Web Address: uk.msi.com
Model Number: B840 GAMING PLUS WIFI
EAN: 4711377286589
UPC: 824142392966
Package Type: Retail
Warranty: 3 Years
Chipset: AMD B840
CPU Interface: Socket AM5
CPU Support: https://www.msi.com/Motherboard/B840-GAMING-PLUS-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8000 (O.C.)
Max. Memory Support: 256GB
PCI Express 3.0 x16: 4
PCI Express 4.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
LAN Speed: Realtek 8125BG 2.5G LAN
Wireless NIC: Wi-Fi 7
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps‚Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth: v5.4
On-Board Audio: Realtek ALC897‚7.1-Channel High Definition Audio
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 4
Back USB 5Gbps Port(s) Type-A: 2
Back USB 10Gbps Port(s) Type-A: 1
Back USB 10Gbps Port(s) Type-C: 1
Back HDMI Port(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): Wi-Fi / Bluetooth
Back Button(s): 1 x Clear CMOS‚1 x Flash BIOS
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 4
USB 5Gbps Header(s): 3
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x EZ Conn-header‚1 x Tuning Controller Connector‚2 x Addressable V2 RGB LED Connector‚1 x RGB LED Connector‚4 x EZ Debug LED
Form Factor: Standard ATX
Product Width: 243.84mm
Product Length: 304.8mm
Package Width: 27cm
Package Length: 34.5cm
Package Height: 7cm
Gross Weight: 1.63Kg
Special Features: Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.‚Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC).‚Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.‚High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.‚Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper.‚Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C.‚EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna.‚Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚EZ Wi-Fi Antenna‚1 to 2 EZ Conn-Cable‚SATA Cable‚EZ M.2 Clip II‚EZ M.2 Clip II Remover
Keywords: Motherboard‚B840‚AM5‚Wi-Fi 7
|
