Condition |
Brand New
|
Product Numbers |
Part Code: MAG B650M MORTAR WIFI
EAN Number: 4711377010207
|
Stock Status |
| We have more stock arriving: 17/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£152.25 exc vat |
| 10 - 19 units |
£151.87 exc vat |
| 20 - 49 units |
£151.48 exc vat |
| 50 - 99 units |
£151.1 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

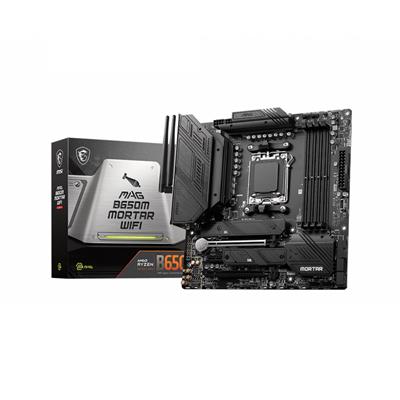

Product Title: MSI MAG B650M MORTAR WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB122411
Manufacturers Part Code: MAG B650M MORTAR WIFI
Product Name: MSI MAG B650M MORTAR WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: uk.msi.com
Model Number: MAG B650M MORTAR WIFI
EAN: 4711377010207
UPC: 824142301081
Package Type: Retail
Warranty: 3 Years
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.msi.com/Motherboard/MAG-B650M-MORTAR-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 6400+ (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 2
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 6
RAID: Raid 0/1/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: Realtek RTL8125B 2.5Gbps LAN
Wireless NIC: Wi-Fi 6E
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX‚Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands‚Supports 802.11 a/b/g/n/ac/ax
Bluetooth: v5.2
On-Board Audio: Realtek ALC4080 Codec‚7.1-Channel High Performance Audio‚Supports S/PDIF output‚Supports up to 32-Bit/384 kHz playback on front panel
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 3
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): Wi-Fi / Bluetooth Antenna
Back Button(s): 1 x Flash BIOS
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 4
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Tuning Controller Connector‚2 x Addressable V2 RGB LED Connector‚2 x RGB LED Connector
Form Factor: Micro ATX
Product Width: 243.84mm
Product Length: 243.84mm
Package Width: 27cm
Package Length: 28.5cm
Package Height: 7cm
Gross Weight: 1.61Kg
Special Features: Supports AMD Ryzen 7000 Series Desktop Processors.‚Supports DDR5 Memory, up to 6400+(OC) MHz.‚Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.‚2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.‚Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs.‚Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.‚AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚2 x SATA Cables‚EZ M.2 Clips‚Cable Sticker‚Wi-Fi Antenna
Keywords: Motherboard‚AM5‚B650‚DDR5‚Wi-Fi‚Bluetooth
|
