Condition |
Brand New
|
Product Numbers |
Part Code: MPG B650 EDGE WIFI
EAN Number: 4711377010191
|
Stock Status |
| We have more stock arriving: 10/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£189.78 exc vat |
| 10 - 19 units |
£189.31 exc vat |
| 20 - 49 units |
£188.83 exc vat |
| 50 - 99 units |
£188.36 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

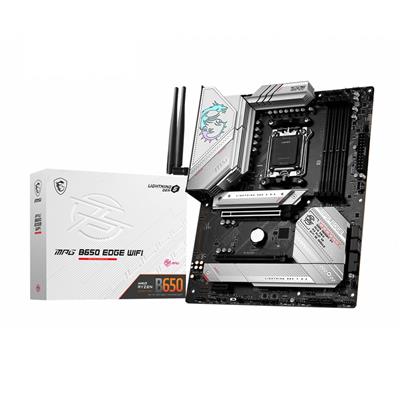

Product Title: MSI MPG B650 EDGE WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB122407
Manufacturers Part Code: MPG B650 EDGE WIFI
Product Name: MSI MPG B650 EDGE WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)
Web Address: uk.msi.com
Model Number: MPG B650 EDGE WIFI
EAN: 4711377010191
UPC: 824142301074
Package Type: Retail
Warranty: 3 Years
Chipset: AMD B650
CPU Interface: Socket AM5
CPU Support: https://www.msi.com/Motherboard/MPG-B650-EDGE-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 6600+ (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 2
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 6
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚2 x PCIe Gen 5.0 x4
On-Board LAN: Realtek RTL8125BG 2.5Gbps LAN
Wireless NIC: Wi-Fi 6E
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX‚Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands‚Supports 802.11 a/b/g/n/ac/ax
Bluetooth: v5.2
On-Board Audio: Realtek ALC4080 Codec‚7.1-Channel USB High Performance Audio‚Supports up to 32-Bit/384 kHz playback on front panel
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 4
Back USB 3.2 Port(s) Type-A Gen 2: 3
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): Wi-Fi / Bluetooth
Back Button(s): 1 x Flash BIOS
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Tuning Controller Connector‚2 x Addressable V2 RGB LED Connector‚2 x RGB LED Connector‚4 x EZ Debug LED‚1 x EZ LED Control Switch
Form Factor: Standard ATX
Product Width: 243.84mm
Product Length: 304.8mm
Package Width: 27cm
Package Length: 34cm
Package Height: 7cm
Gross Weight: 2.04Kg
Special Features: Supports AMD Ryzen 7000 Series Desktop Processors.‚Supports DDR5 Memory, up to 6600+(OC) MHz.‚Enhanced Power Design: DRPS 14+2+1 VRM power, Core Boost, Memory Boost.‚Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.‚High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.‚2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.‚Lightning-Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2.‚DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor.‚AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚Wi-Fi Antenna‚2 x SATA Cables‚Cable Stickers‚2 x EZ M.2 Clip Package‚2 x M.2 Screw Package
Keywords: Motherboard‚AM5‚B650‚DDR5‚Wi-Fi‚Bluetooth
|
