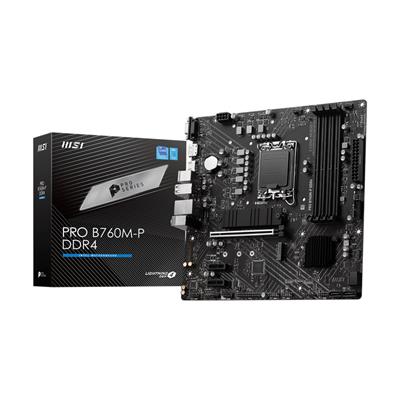

MSI PRO B760M-P DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)
[MB122852]

Condition  Brand New Product Numbers  Part Code: PRO B760M-P DDR4  EAN Number: 4711377030991 Stock Status Currently 2 available in stock. We have more stock arriving: Delivery Price  Add to Cart for Instant Delivery Pricing  Quantity Price Break Discounts  5 - 9 units   £77.05 exc vat   10 - 19 units   £76.85 exc vat   20 - 49 units   £76.66 exc vat   50 - 99 units   £76.47 exc vat   100 or more units   * Negotiable *  Discounts Are Applied During Checkout Share Content

Product Title: MSI PRO B760M-P DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)

KSN SKU Code: MB122852

Manufacturers Part Code: PRO B760M-P DDR4

Product Name: MSI PRO B760M-P DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address: uk.msi.com

Model Number: PRO B760M-P DDR4

EAN: 4711377030991

UPC: 824142308240

Package Type: Retail

Warranty: 3 Years

Chipset: Intel B760

CPU Interface: Socket 1700

CPU Support: https://www.msi.com/Motherboard/PRO-B760M-P-DDR4/support#cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 4800 (O.C.)

Max. Memory Support: 128GB

PCI Express 4.0 x16: 1

PCI Express 4.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA

On-Board LAN: Realtek RTL8111H Gigabit LAN

On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio

On-Board Video: Processor with integrated graphics is required

Back PS/2 Mouse Port: 1

Back PS/2 Keyboard Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 1: 1

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back VGA Port(s): 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 4

USB 3.2 Header(s) Gen 1: 2

Parallel Port Header(s): 1

COM Port Header(s): 1

TPM Header(s): 1

Internal Other Port(s): 1 x RGB LED Connector‚4 x EZ Debug LED

Form Factor: Micro ATX

Product Width: 243.84mm

Product Length: 243.84mm

Package Width: 27.5cm

Package Length: 30cm

Package Height: 5.3cm

Gross Weight: 0.87Kg

Special Features: Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.‚USB 3.2 Gen 2 Type-C: Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.‚PCI-E Steel Armor: Protecting VGA cards against bending and EMI.‚EZ Debug LED: Easiest way to troubleshoot.‚Frozr AI Cooling: Detect CPU and GPU temperatures and automatically adjust system fan duty to a proper value.‚Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.‚Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.‚Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Package Contents: Motherboard‚Quick Installation Guide‚2 x M.2 Screw / Standoff Sets‚SATA Cable‚IO Shield

Keywords: Motherboard‚1700‚B760‚DDR4‚M-ATX‚Micro ATX
