Condition |
Brand New
|
Product Numbers |
Part Code: PRO B760M-P
EAN Number: 4711377086578
|
Stock Status |
Currently 12 available in stock.
We have more stock arriving: 11/11/2024 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£85.06 exc vat |
| 10 - 19 units |
£84.85 exc vat |
| 20 - 49 units |
£84.63 exc vat |
| 50 - 99 units |
£84.42 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

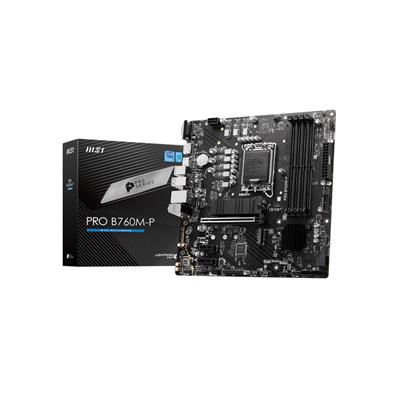

Product Title: MSI PRO B760M-P (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB123297
Manufacturers Part Code: PRO B760M-P
Product Name: MSI PRO B760M-P (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: uk.msi.com
Model Number: PRO B760M-P
EAN: 4711377086578
UPC: 824142319802
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.msi.com/Motherboard/PRO-B760M-P/support#cpu
RAM Technology: DDR5 (Quad Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 6800+ (O.C.)
Max. Memory Support: 192GB
PCI Express 4.0 x16: 1
PCI Express 4.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: Realtek RTL8111H Gigabit LAN
On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio
On-Board Video: Processor with integrated graphics is required
Back PS/2 Mouse Port: 1
Back PS/2 Keyboard Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 1
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 4
USB 3.2 Header(s) Gen 1: 2
Parallel Port Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x RGB LED connector‚4 x EZ Debug LED
Form Factor: Micro ATX
Product Width: 243.84mm
Product Length: 243.84mm
Package Width: 27cm
Package Length: 30cm
Package Height: 5.3cm
Gross Weight: 0.91Kg
Special Features: Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.‚USB 3.2 Gen 2 Type-C: Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.‚PCI-E Steel Armor: Protecting VGA cards against bending and EMI.‚EZ Debug LED: Easiest way to troubleshoot.‚Frozr AI Cooling: Detect CPU and GPU temperatures and automatically adjust system fan duty to a proper value.‚Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.‚Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.‚Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
Package Contents: Motherboard‚1 x Quick installation guide‚1 x SATA 6Gb/s cable‚1 x M.2 screw and standoff package (2 sets/pack)‚IO shielding
Keywords: Motherboard‚1700‚DDR5‚M-ATX‚Micro ATX
|
