Condition |
Brand New
|
Product Numbers |
Part Code: PRO B760M-A WIFI DDR4
EAN Number: 4711377026383
|
Stock Status |
| We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£107.45 exc vat |
| 10 - 19 units |
£107.18 exc vat |
| 20 - 49 units |
£106.91 exc vat |
| 50 - 99 units |
£106.64 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

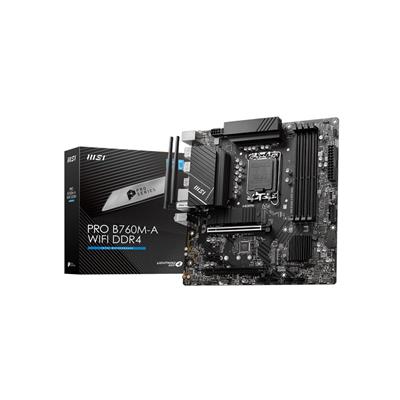

Product Title: MSI PRO B760M-A WIFI DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB122851
Manufacturers Part Code: PRO B760M-A WIFI DDR4
Product Name: MSI PRO B760M-A WIFI DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/Micro ATX)
Web Address: uk.msi.com
Model Number: PRO B760M-A WIFI DDR4
EAN: 4711377026383
UPC: 824142305973
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B760
CPU Interface: Socket 1700
CPU Support: https://www.msi.com/Motherboard/PRO-B760M-A-WIFI-DDR4/support#cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 5333 (O.C.)
Max. Memory Support: 128GB
PCI Express 4.0 x16: 2
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA
On-Board LAN: Realtek RTL8125BG 2.5G LAN
Wireless NIC: Wi-Fi 6E
Bluetooth: v5.3
On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back HDMI Port(s): 2
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): Wi-Fi / Bluetooth
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 4
USB 3.2 Header(s) Gen 1: 5
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable V2 RGB LED Connector‚1 x RGB LED Connector‚4 x EZ Debug LED
Form Factor: Micro ATX
Product Width: 243.84mm
Product Length: 243.84mm
Package Width: 27.5cm
Package Length: 30cm
Package Height: 5.5cm
Gross Weight: 1.28Kg
Special Features: Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.‚Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps.‚Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.‚M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.‚2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.‚EZ Debug LED: Easiest way to troubleshoot.‚Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.‚Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.‚Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Package Contents: Motherboard‚Quick Installation Guide‚2 x M.2 Screw / Standoff Sets‚SATA Cable‚Wi-Fi Antenna‚IO Shield
Keywords: Motherboard‚1700‚B760‚DDR4‚WiFi‚Bluetooth
|
