Condition |
Brand New
|
Product Numbers |
Part Code: PRO B860M-A WIFI
EAN Number: 4711377286565
|
Stock Status |
Currently 44 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£146.98 exc vat |
| 10 - 19 units |
£146.61 exc vat |
| 20 - 49 units |
£146.24 exc vat |
| 50 - 99 units |
£145.88 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

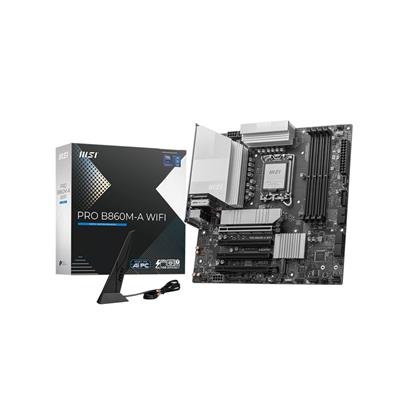

Product Title: MSI PRO B860M-A WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126151
Manufacturers Part Code: PRO B860M-A WIFI
Product Name: MSI PRO B860M-A WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: uk.msi.com
Model Number: PRO B860M-A WIFI
EAN: 4711377286565
UPC: 824142392942
Package Type: Retail
Warranty: 3 Years
Chipset: Intel B860
CPU Interface: Socket 1851
CPU Support: https://www.msi.com/Motherboard/PRO-B860M-A-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8600 (O.C.)
Max. Memory Support: 256GB
PCI Express 4.0 x16: 3
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x2
LAN Speed: Realtek 8126 5Gbps LAN
Wireless NIC: Wi-Fi 7
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps‚Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth: v5.4
On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 5Gbps Port(s) Type-A: 2
Back USB 10Gbps Port(s) Type-A: 1
Back USB 10Gbps Port(s) Type-C: 1
Back Thunderbolt 4 Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): Wi-Fi / Bluetooth
Back Button(s): 1 x Clear CMOS
24-pin ATX Power: 1
8-pin ATX Power: 2
PCIe Power Connector(s): 1 x 8-pin
USB 2.0 Header(s): 4
USB 5Gbps Header(s): 4
USB 10Gbps Header(s): 1
COM Port Header(s): 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x Tuning Controller connector‚2 x Addressable V2 RGB LED connector‚1 x RGB LED connector‚4 x EZ Debug LED
Form Factor: Micro ATX
Product Width: 243.84mm
Product Length: 243.84mm
Package Width: 27cm
Package Length: 28.5cm
Package Height: 7.5cm
Gross Weight: 1.42Kg
Special Features: Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.‚Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC).‚Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB.‚Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.‚EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna.‚Lightning-Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2.‚Ultra Connect: Thunderbolt 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.‚Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚2 x M.2 Screw / Standoff Sets‚EZ M.2 Clip II Remover‚2 x EZ M.2 Clip II‚EZ Wi-Fi Antenna‚STAT Cable
Keywords: Motherboard‚1851‚B860‚Wi-Fi 7‚Micro ATX
|
