Condition |
Brand New
|
Product Numbers |
Part Code: PRO Z790-A MAX WIFI
EAN Number: 4711377139939
|
Stock Status |
Currently 47 available in stock.
We have more stock arriving: |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£203.02 exc vat |
| 10 - 19 units |
£202.51 exc vat |
| 20 - 49 units |
£202 exc vat |
| 50 - 99 units |
£201.49 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

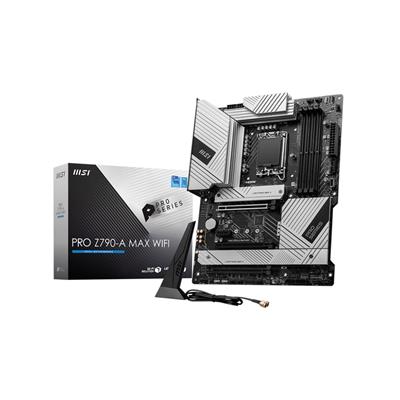

Product Title: MSI PRO Z790-A MAX WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
KSN SKU Code: MB124209
Manufacturers Part Code: PRO Z790-A MAX WIFI
Product Name: MSI PRO Z790-A MAX WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)
Web Address: uk.msi.com
Model Number: PRO Z790-A MAX WIFI
EAN: 4711377139939
UPC: 824142337301
Package Type: Retail
Warranty: 3 Years
CPU Interface: Socket 1700
CPU Support: https://www.msi.com/Motherboard/PRO-Z790-A-MAX-WIFI/support#cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 7800+ (O.C.)
Max. Memory Support: 192GB
PCI Express 3.0 x16: 1
PCI Express 4.0 x16: 1
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA 6Gb/s Port(s): 6
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4‚2 x PCIe Gen 4.0 x4/SATA
LAN Speed: Intel 2.5Gbps LAN
Wireless NIC: Wi-Fi 7
Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps‚Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth: v5.4
On-Board Audio: Realtek ALC4080 Codec‚7.1-Channel USB High Performance Audio‚Supports S/PDIF output
On-Board Video: Processor with integrated graphics is required
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back USB 3.2 Port(s) Type-C Gen 2x2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Other Port(s): Wi-Fi / Bluetooth
Back Button(s): Flash BIOS
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 4
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 2
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 1 x TBT connector‚1 x Tuning Controller connector‚3 x Addressable V2 RGB LED connector‚1 x RGB LED connector‚1 x USB4 card connector‚4 x EZ Debug LED
Form Factor: Standard ATX
Product Width: 243.84mm
Product Length: 304.8mm
Package Width: 27cm
Package Length: 34.5cm
Package Height: 7.2cm
Gross Weight: 1.99Kg
Special Features: Supports Intel Core Next-gen / 13th Gen / 12th Gen, Pentium Gold and Celeron processors for LGA 1700 socket.‚Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC).‚Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost.‚Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.‚High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.‚Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2.‚Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.‚2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.‚AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Package Contents: Motherboard‚Quick Installation Guide‚M.2 Screw / Standoff Set‚2 x M.2 Clips‚Wi-Fi Antenna‚2 x SATA Cables‚Suppoer Disk
Keywords: Motherboard‚1700‚Z790‚DDR5‚WiF‚Bluetooth
|
