Condition |
Brand New
|
Product Numbers |
Part Code: B850M D3HP
EAN Number:
|
Stock Status |
| We have more stock arriving: 09/03/2025 |
Delivery Price |
Add to Cart for Instant Delivery Pricing |
Quantity Price Break Discounts |
| 5 - 9 units |
£105.32 exc vat |
| 10 - 19 units |
£105.06 exc vat |
| 20 - 49 units |
£104.79 exc vat |
| 50 - 99 units |
£104.53 exc vat |
| 100 or more units |
* Negotiable * |
Discounts Are Applied During Checkout |
Share Content |
|
|

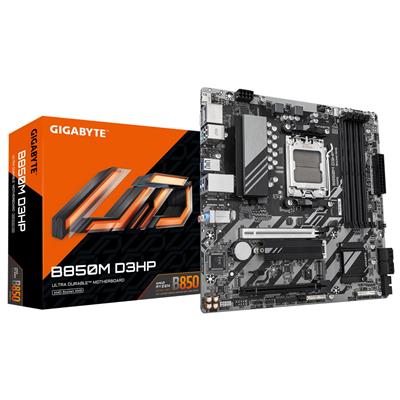

Product Title: +NEW+Gigabyte B850M D3HP (AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)
KSN SKU Code: MB126185
Manufacturers Part Code: B850M D3HP
Product Name: +NEW+Gigabyte B850M D3HP (AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address: www.gigabyte.com
Model Number: B850M D3HP
EAN: 4719331867058
Package Type: Retail
Warranty: 3 Years
BIOS: 1 x 256 Mbit flash‚Use of licensed AMI UEFI BIOS‚PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B850
CPU Interface: Socket AM5
CPU Support: https://www.gigabyte.com/Motherboard/B850M-D3HP/support#support-cpu
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 8200 (O.C.)
Max. Memory Support: 256GB
PCI Express 3.0 x16: 1
PCI Express 5.0 x16: 1
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/10
M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4
LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
On-Board Audio: Realtek Audio CODEC‚High Definition Audio‚2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 3
Back USB 3.2 Port(s) Type-C Gen 1: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s): 2 x Addressable RGB Gen2 LED strip headers‚1 x RGB LED strip header
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
Special Features: X3D Turbo Mode to unleash new era gaming performance.‚AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.‚Digital 5+2+2 phases VRM solution.‚Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.‚EZ-Latch: PCIe x16 Slot with Quick Release Design.‚Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.‚Ultra-Fast Storage: 2 x M.2 slots, including 1 x PCIe 5.0 x4.‚Fast Networking: GbE LAN.‚Extended Connectivity: 2 x DP, HDMI.
Package Contents: Motherboard‚Manual‚Quick Installation Guide‚I/O Shield‚1 x SATA cable‚One pack of M.2 thick/thin rubber pads
Keywords: Motherboard‚AM5‚B850‚DDR5‚Micro ATX
|
