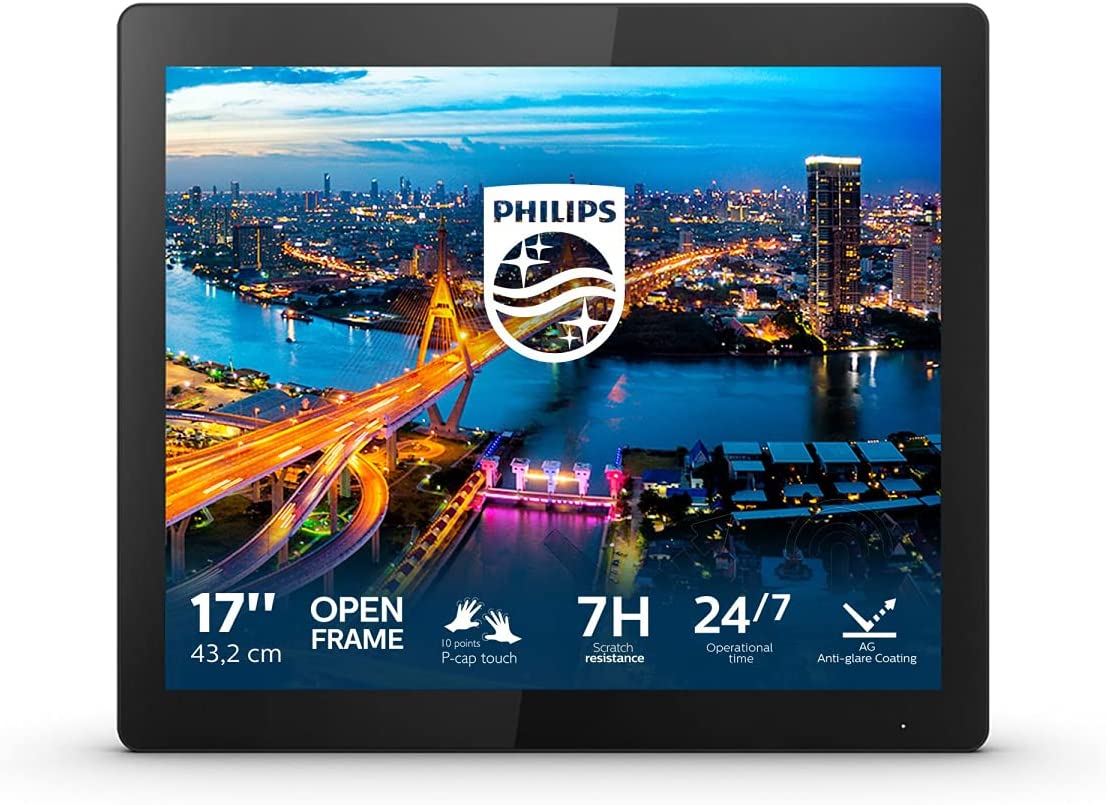

Philips 172B1TFL/00 Open-frame touch-screen monitor
[172B1TFL/00]

£179.99 (inc VAT) / £149.99 (exc VAT)

Click To Enlarge

Condition
Brand New
Product Numbers
Part Code: 172B1TFL/00 EAN Number: 8712581772918
Stock Status
Currently 4 available in stock. We have more stock arriving:
Delivery Price
Add to Cart for Instant Delivery Pricing
Quantity Price Break Discounts
5 - 9 units	£149.62 exc vat
10 - 19 units	£149.24 exc vat
20 - 49 units	£148.87 exc vat
50 - 99 units	£148.49 exc vat
100 or more units	* Negotiable *
Discounts Are Applied During Checkout
Share Content

Philips 172B1TFL/00 Open-frame touch-screen monitor with smoothtouch

SmoothTouch display for natural, fluid touch response

This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.

Monitor front surface meets IP65 for water and dust resistance

For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.

Anti-glare coating (AG) for reducing the visual interference

Anti-Glare Coating, abbreviated AG, can reduce the glare of your touch monitor screen. This chemical process is made in the back of the touch glass and therefore you don't need an additional film to have comfort in your eyes. Images are crystal clear with pure colour and great clarity.

SmartContrast for rich black details

SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.

LowBlue Mode for easy-on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Less eye fatigue with Flicker-Free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

HDMI ensures universal digital connectivity

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

DisplayPort connection for maximum visuals

DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates — making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters.

EasyRead mode for a paper-like reading experience

Technical Specifications

Picture/Display

LCD panel type

TFT-LCD (TN)

Backlight type

W-LED system

Panel Size

17 inch/43.2 cm

Effective viewing area

337.92 (H) x 270.336 (V)

Aspect ratio

5:4

Maximum resolution

1280 x 1024 @ 75 Hz*

Pixel Density

96 PPI

Response time (typical)

4 ms (Grey to Grey)*

Brightness

400 cd/m²

Contrast ratio (typical)

1000:1

SmartContrast

50,000,000:1

Pixel pitch

0.264 x 0.264 mm

Viewing angle
- 160º (H) / 140º (V)
- @ C/R > 10
Picture enhancement

SmartImage

Colour gamut (typical)

NTSC 90% (CIE 1931)

Display colours

16.7 M

Scanning Frequency

30 - 83 kHz (H) / 50 - 75 Hz (V)

sRGB

Yes

Flicker-free

Yes

EasyRead

Yes

LowBlue Mode

Yes
Touch

Touch technology

Projected capacitive

Touch points

10 points

Touch method

Stylus, Finger, Glove*

Touch interface

USB

Touch glass hardness

7 H

Touch glass coating

AG coating (Haze: 5% -/+ 3%, Gloss: 80 -/+ 10)

Touch active area

339.72 mm (H) x 270.336 mm (V)

Operating system

Windows 10 / 8.1 / 8 / 7; Android 11 / 10 / 9 / 8*

Palm rejection area

>= 30 x 30 mm

Brightness

340 nits (typ.)

Ingress protection

IP65 - front only

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD
Connectivity

Signal Input
- VGA (Analogue)
- DVI-D (digital, HDCP)
- DisplayPort 1.2
- HDMI 1.4
USB:

USB 3.2 x 1 (Upstream), USB 3.2 x 2 (Downstream with 1 fast charge B.C 1.2), mini USB x 1

Sync Input
- Separate Sync
- Sync on Green
Audio (In/Out)

Audio out
Convenience

User convenience
- SmartImage
- Input
- Brightness
- Menu
- Power On/Off
Control software

SmartControl

OSD Languages
- Brazil Portuguese
- Czech
- Dutch
- English
- Finnish
- French
- German
- Greek
- Hungarian
- Italian
- Japanese
- Korean
- Polish
- Portuguese
- Russian
- Simplified Chinese
- Spanish
- Swedish
- Traditional Chinese
- Turkish
- Ukrainian
Other convenience
- Kensington lock
- OSD keypad control
- VESA mount (100 x 100 mm)
Plug and Play Compatibility
- DDC/CI
- sRGB
- Windows 10 / 8.1 / 8 / 7
Power

ECO mode

7.9 W (typ.)

On mode

12.1 W (typ.)

Standby mode

0.4 W (typ.)

Off mode

0.3 W (typ.)

Energy Label Class

E

Power LED indicator
- Operation - White
- Standby mode - White (flashing)
Power supply
- External
- 100–240 VAC, 50–60 Hz
Dimensions

Product without stand (mm)

383 x 329 x 49 mm

Packaging in mm (W x H x D)

465 x 384 x 123 mm
Weight

Product without stand (kg)

4.30 kg

Product with packaging (kg)

5.83 kg
Operating conditions

Temperature range (operation)

0°C to 40 °C

Temperature range (storage)

-20°C to 60 °C

Relative humidity

20%-80 %

Altitude

Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

MTBF (demonstrated)

70,000 hrs (excluded backlight)

Operational time

24/7

Installation or placement

Landscape/Portrait/Face up
Sustainability

Environmental and energy

RoHS

Recyclable packaging material

100 %

Specific Substances
- PVC/BFR free housing
- Mercury free
Compliance and standards

Regulatory Approvals
- CB
- CE Mark
- FCC Class B
- SEMKO
- UKRAINIAN
- ICES-003
- CU-EAC
- EAEU RoHS
- TUV Ergo
- TUV/GS
- TUV Eye Comfort certified
Cabinet

Front bezel

Black

Rear cover

Black

Finish

Texture
What's in the box?

Monitor

Yes

Cables

HDMI cable, DP cable, USB-A to B cable, Power cable

User Documentation

Yes

L-Brackets system

Yes

OSD keypad

Yes
